3BX07 DP M To HDMI F 4K30Hz P.M PIGTAIL

Product Description

nT03BX07- DP TO HDMI F Panel Mount Pigtail

nT03BX07-DP to HDMI F Pigtail converts DP signal into HDMI video and audio signals . It helps to connect HDMI display or projectors to the latest DP interface of the sources like laptop , computers etc .. , .Supports Ultra HD (UHD) 4K 30Hz (3840×2160) & 1920×1200 (1080p) video, 7.1ch Audio , HDCP 1.4 The pigtail dose not support bi directional use . This is a active pigtail – it supports DP++ , ATI Eyefinity , enables multi screen extensions . The DP Connectors are latch type for robust connectivity and the HDMI Female is panel mountable – so that it can be fixed on metal panels , console and the HDMI interface can be accessible from the chassis or plate . Length of the pigtails is 500 mm . Used for AV Integrations , pro audio like Auditorium , meeting room , class rooms , hospitals , studio ……

Specification

DP male input.
HDMI female output.
Length of the pigtail end to end -500 mm.
Supports resolutions Ultra HD (UHD) 4K 30Hz (3840×2160) & 1920×1200 (1080p).
Latch type DP Connector.
Panel Mount Hdmi Female using m3 xcrew Active conversion Pigtail.
Works with DP++.
ATI Eyefinity.
multi display application .
Hdcp compliant.
HDMI output can support cables up to 10 mtrs.
Colour black

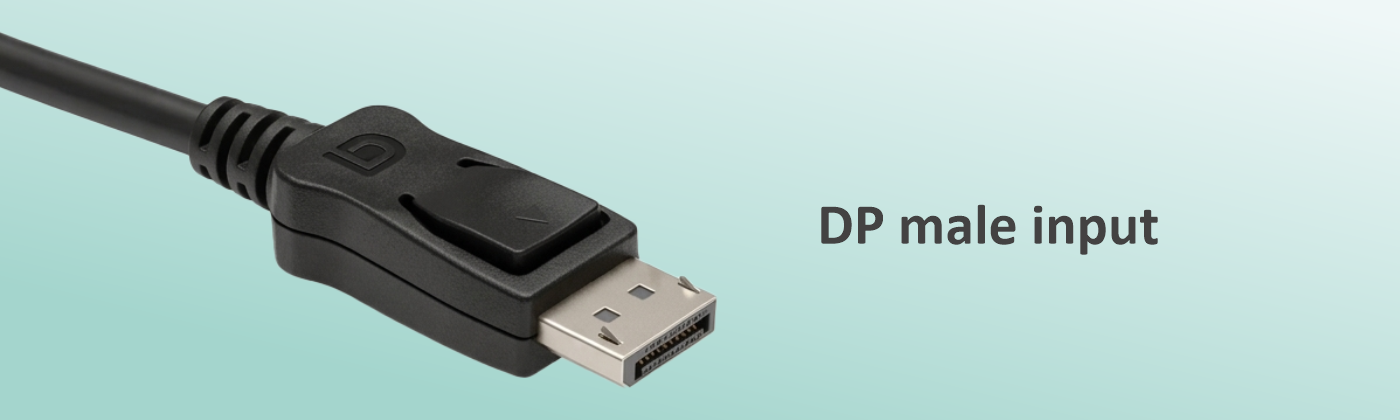

Connector A DP MALE Latch type – Input
Connector B HDMI FEMALE Panel mount- out put
LENGTH END TO END 0.5
RESOLUTION Ultra HD (UHD) 4K 30Hz (3840×2160) & 1920×1200 / 1080p60Hz
Conversion Type Active
Multi Monitor Setup Supported
Supports  DP ++ , ATI Eyefinity , Multi display setup .
TIE HOLE OD 3 MM
OUTPUT CABLE LENGTH SUPPORTED HDMI OUTPUT CAN SUPPORT LENGTHS UP TO 10 MTRS
COLOUR RAL 500B (BLUE-BLACK)
