3BX06 DP M TO HDMI F 1080P PIGTAIL

Video Link

Product Description

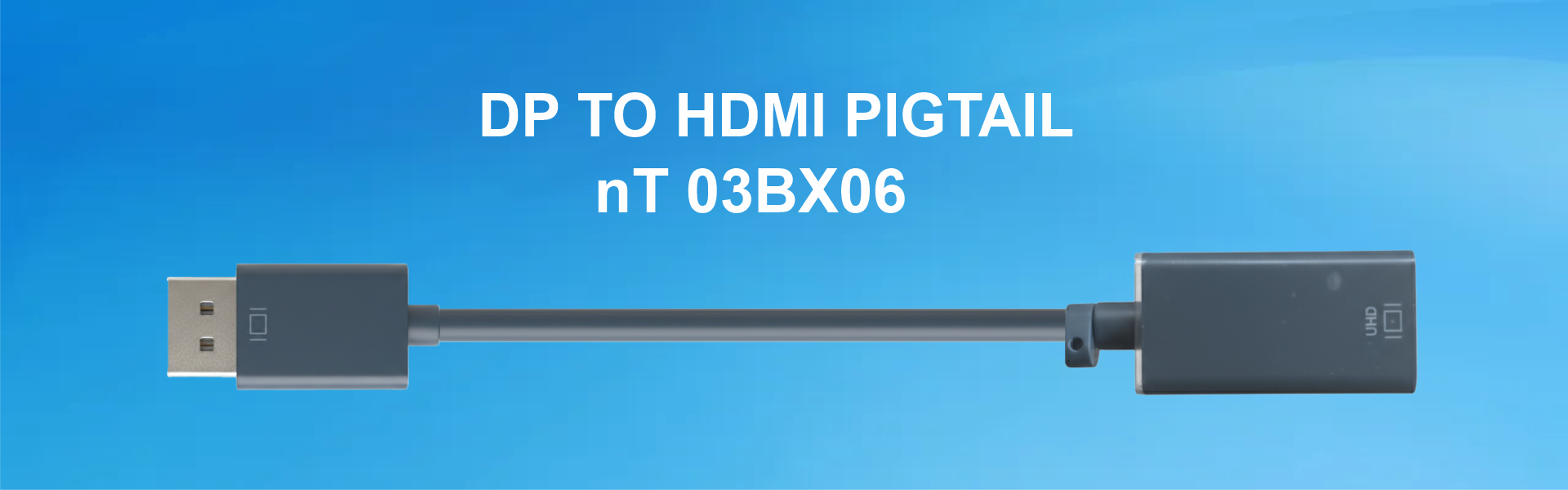

nT03BX06 DP TO HDMI Pigtail

nT03BX06 DP to HDMI Pigtail converts DP signal into HDMI video and audio signals . It helps to connect HDMI display or projectors to the latest DP interface of the sources like laptop , computers etc .. , .Supports HD 1920×1200 / 1080p 60 Hz resolution , 7.1ch Audio, HDCP 1.4 The pigtail dose not support bi directional use .It is provided with anti theft tie hole – so that it can be tied to the display cable – avoiding misplacement and theft . Used for AV Integrations , pro audio like Auditorium , meeting room , class rooms , hospitals , studio ……

Specification

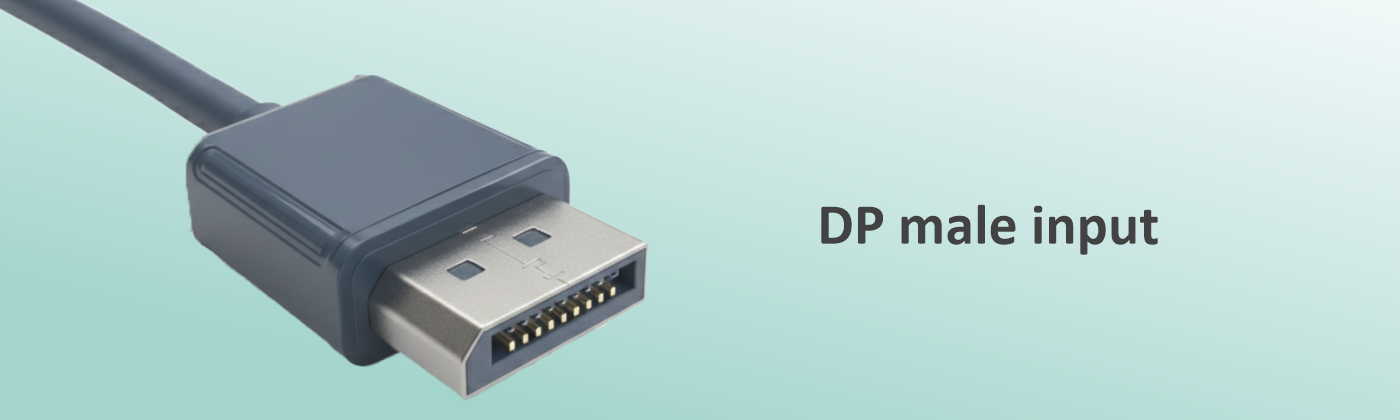

DP male input.
HDMI female output.

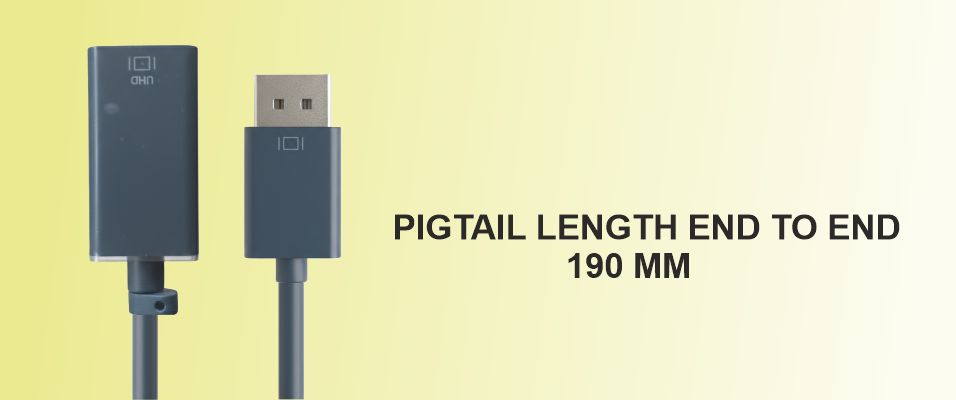

Length of the pigtail end to end -190 mm.
Supports resolutions from uxga to 1080 p.
Hdcp compliant.

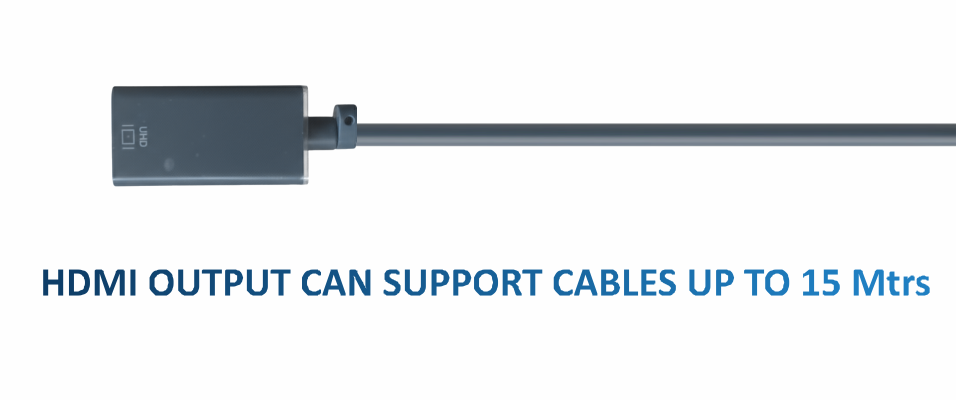

HDMI output can support cables up to 15 mtrs.
Anti theft tie hole of 3 mm od provided.
Colour ral 5008 – blue black colour.

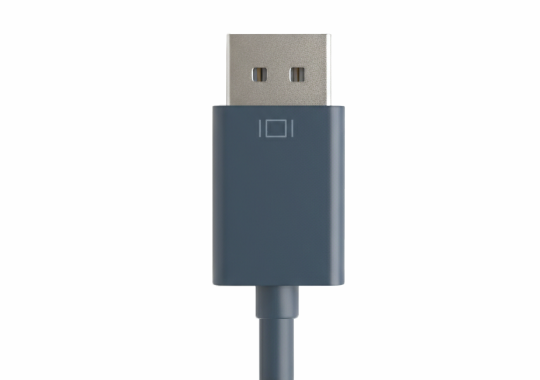

CONNECTOR A DP MALE – Input
CONNECTOR B HDMI FEMALE – out put
LENGTH END TO END 190MM
RESOLUTION UP TO UXGA TO 1080P 60Hz
TIE HOLE OD 3 MM
OUTPUT CABLE LENGTH SUPPORTED HDMI OUTPUT CAN SUPPORT LENGTHS UP TO 15 MTRS
COLOUR RAL 500B (BLUE-BLACK)
Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
“
