21AX01 HDMI 4:4 MATRIX/VW SW

Product Description

nT21AX01 4K60 4:4:4 seamless matrix is a multi-purpose high-speed video processing system. It can be configured for 2 different output modes. It can perform as a 4×4 seamless matrix switcher, as a 2×2, 4×1 or 1×4 etc video wall solution. It also features a web browser interface module for control and configuration of the matrix when used stand-alone or with a third party control system. Control options include front-panel push buttons, IR remote control, RS-232 interface and TCP/IP.

Specification

• Compliant HDCP 2.2 and HDCP 1.4

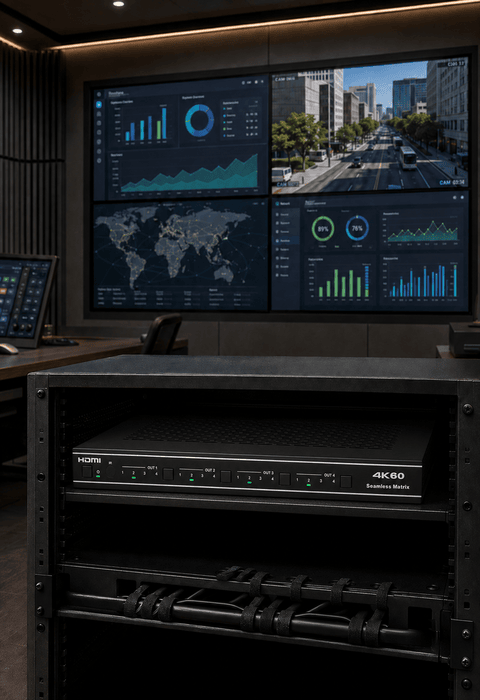

• Features 2 operational modes: – 4×4 Matrix (seamless switch) – Video wall (2×2, 4×1 or 1×4 etc configuration)
• Seamless video switching
• Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920×1200 @60Hz) and 480i-4K (3840×2160 @60Hz 4:4:4
• HDMI outputs support upscale or downscale to any resolution, up to 4096 x 2160@60Hz 4:4:4
• Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
• Advanced EDID management
• Web interface module for control and configuration of Matrix

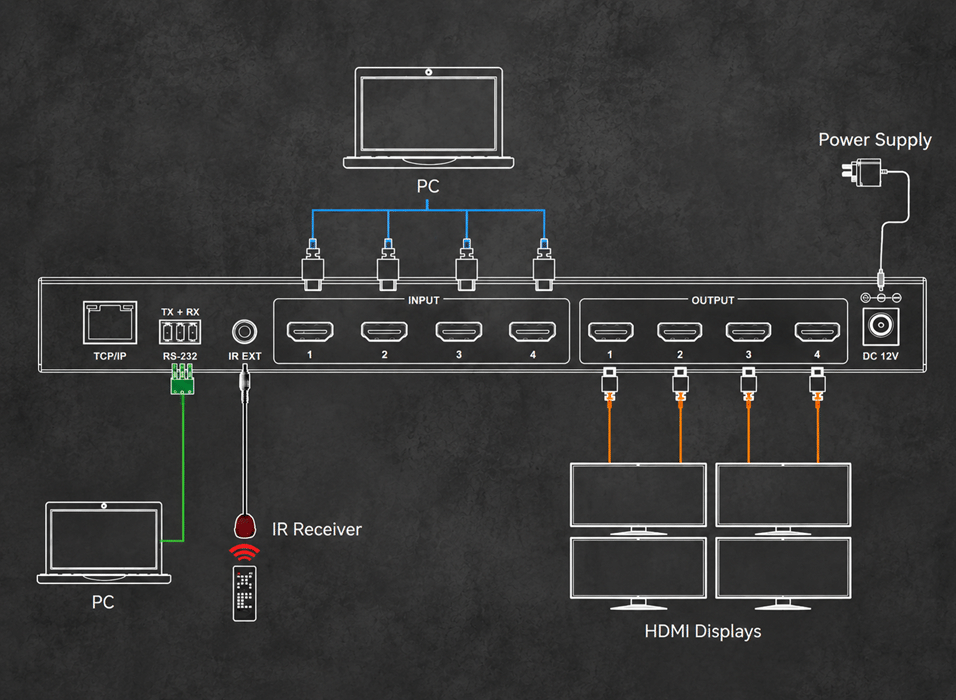

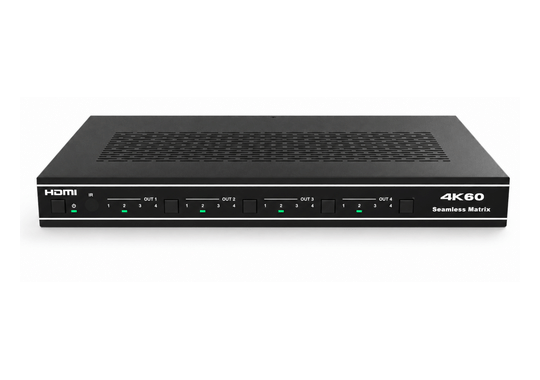

• Control via front panel, IR, RS-232 and TCP/IP

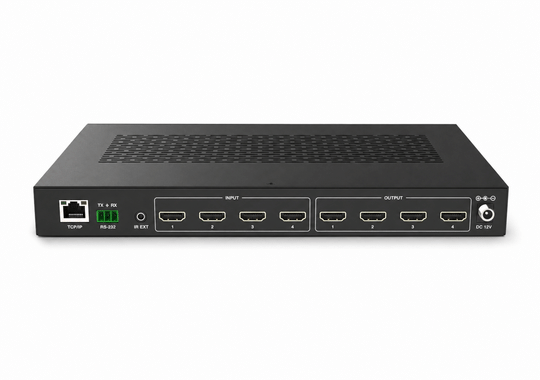

INPUT 4x INPUT [HDMI Type A, 19-pin female]
OUTPUT 4x OUTPUT [HDMI Type A, 19-pin female] 1x TCP/IP [RJ45]
HDMI COMPLIANCE HDMI 2.0b
HDCP COMPLIANCE HDCP 2.2/1.4
VIDEO RESOLUTION 4096 x 2160@60Hz 4:4:4
VIDEO BANDWIDTH 594MHz/18Gbps
HDMI AUDIO FORMATS DTS-96/24, DTS High Res, DTS-HD Master Audio ESD Protection
POWER CONSUMPTION 19.56W (Max) Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
IR LEVEL / FREQUENCY 12Vp-p / 38KHz
COLOR SPACE / DEPTH RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0 / 8/10/12-bit
