Product Description

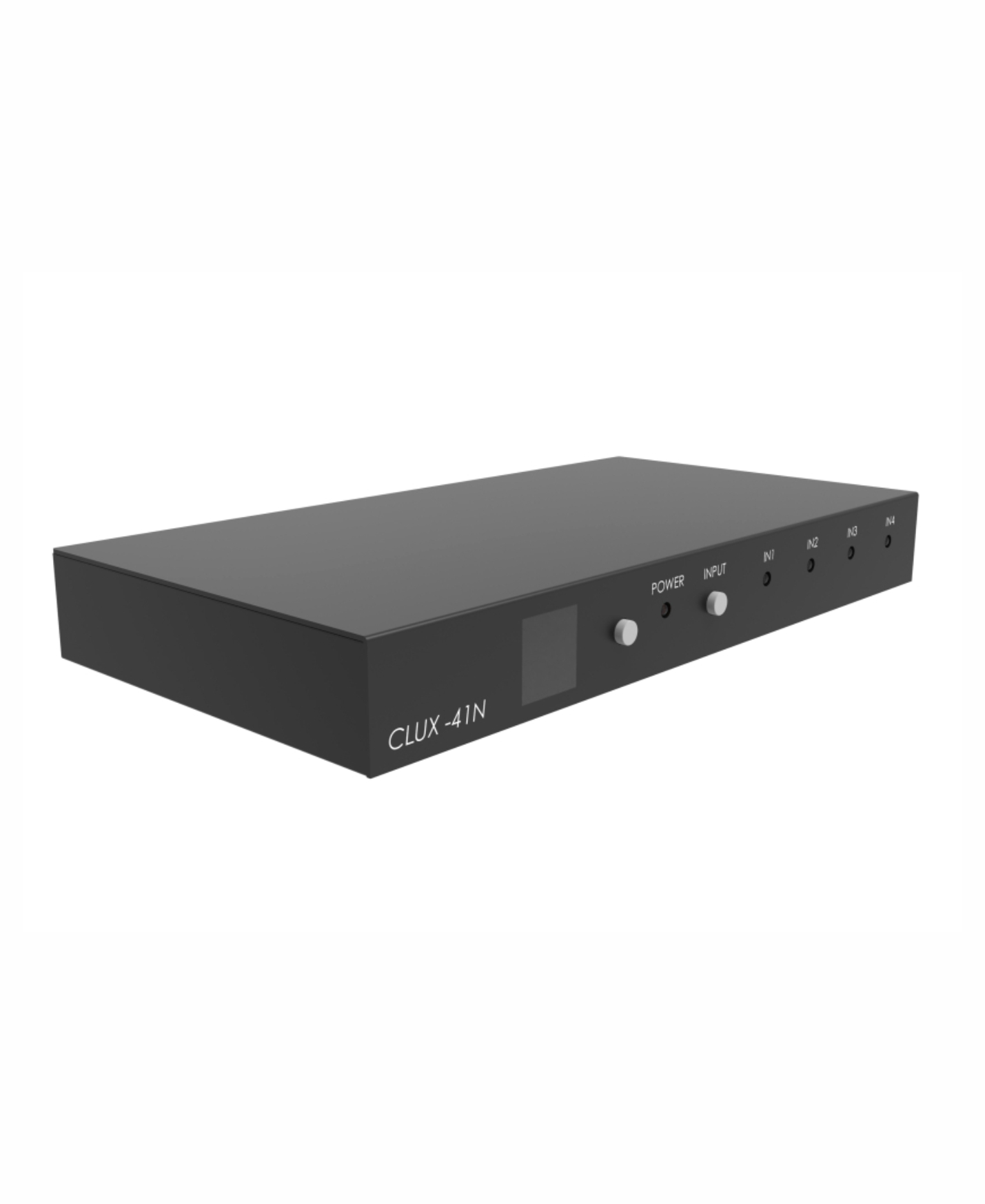

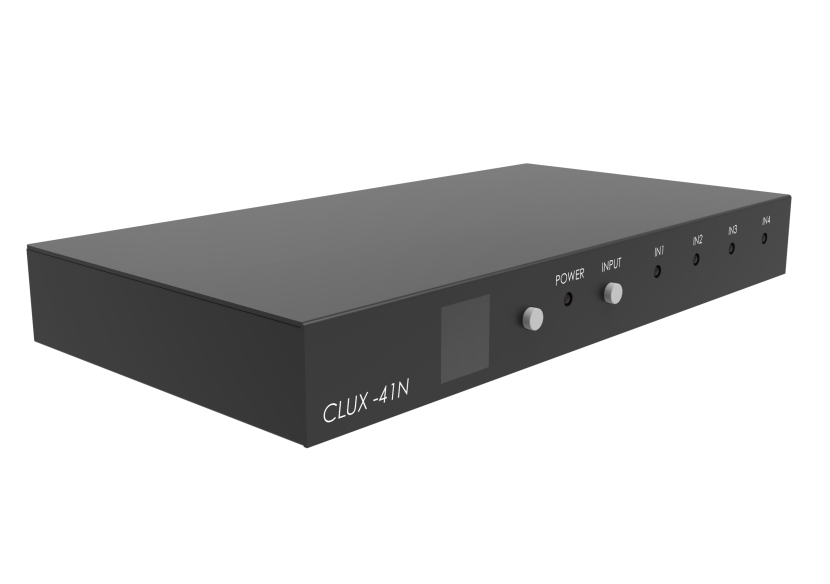

nT14BX04 / CLUX-41N 4 to 1 Switcher

4 to 1 Switcher allows 4 HDMI sources to be connected to the same HDMI TV/Monitor input. It has IR, automatic, and manual input selection and a ‘last memory’ function that remembers the last input selection used. The EDID bypass function ensures the best resolution. The switcher is also DVI compatible with the use of a DVI to HDMI adapter. A perfect tool for meeting rooms , training rooms , class room , auditorium ,huddel rooms ….



Specification

nT14BX04 switcher with 4 HDMI Input and 1 HDMI Output is HDCP 1.1 and DVI 1.0 compliant,
Supports 24/30/36-bit color depth display, 3D , Resolution VGA, SVGA, XGA, SXGA, UXGA (1600×1200) and 1920×1200480i, 480p, 576i, 576p, 720p@50/60, 1080i@50/60 and 1080p@24/50/60
supports High Definition audio – Dolby Digital TrueHD and DTS-HD Master Audio .Supports EDID bypass.
Control via front panel buttons and IR remote control,
Auto input detection with LED indicators.
Supports Last memory on power and input selection.

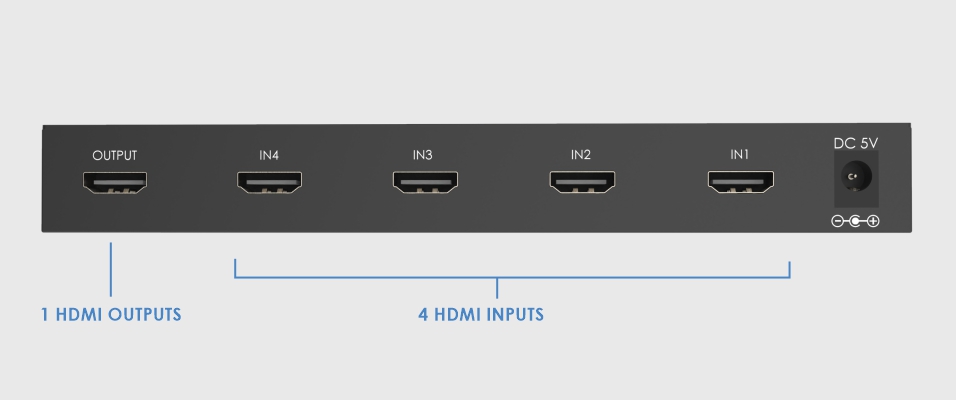

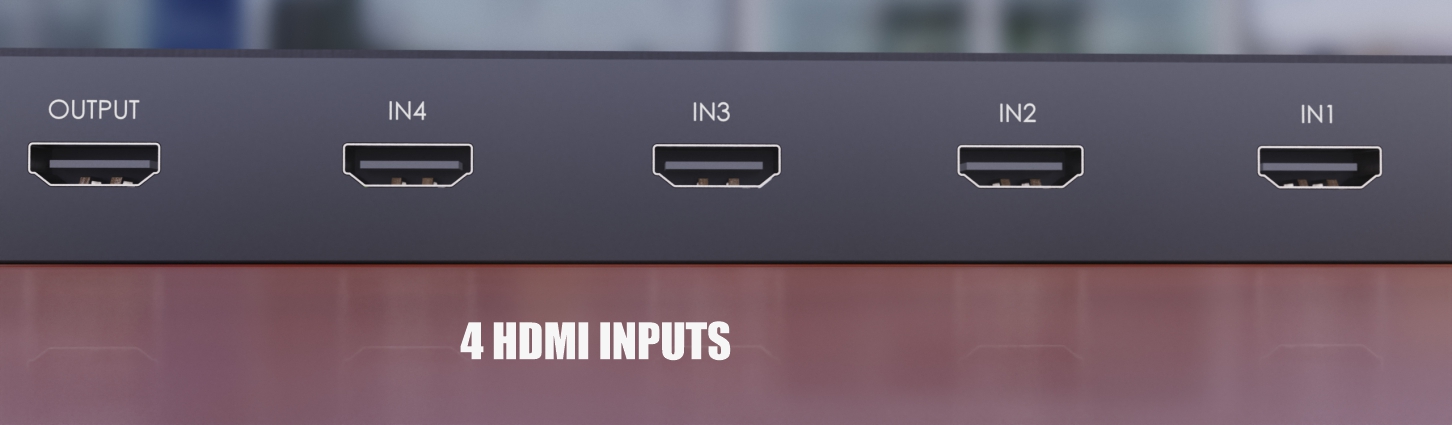

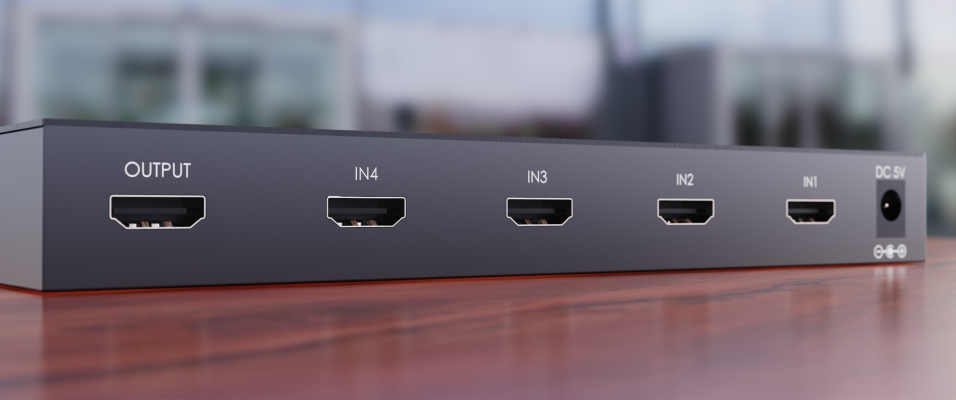

INPUT4 HDMI
OUTPUT1 HDMI
CONTROLFRONT PANEL/IR/AUTO SWITCHING
POWERDC 5V 2.6A
SIZE200MM [W] X 104MM [D] X 25MM [H]
HOUSINGPOEDER COATED STEEL
COLORBLACK
COLORBLACK
RESOLUTIONUP TO 1920X200/1080 60 HZ
