Product Description

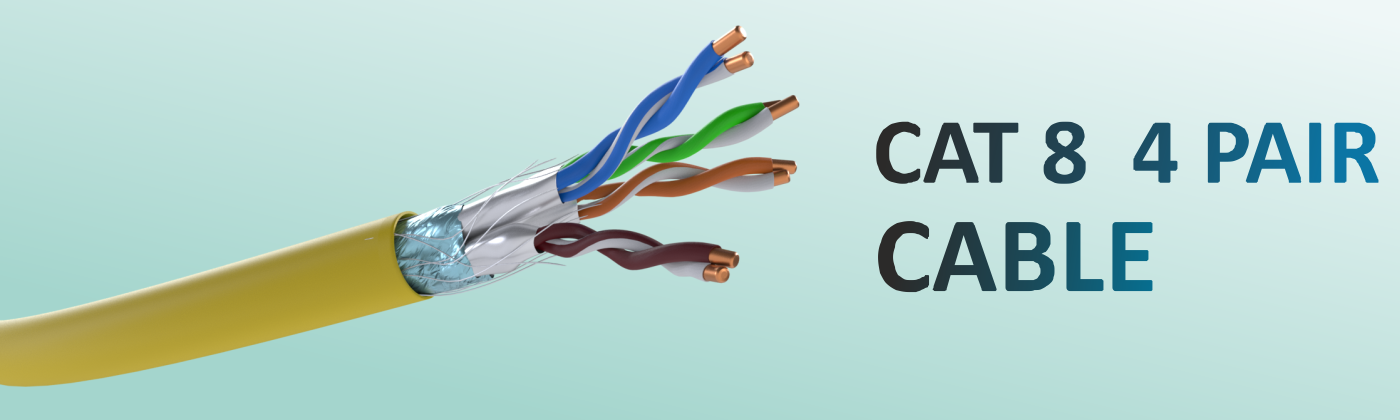

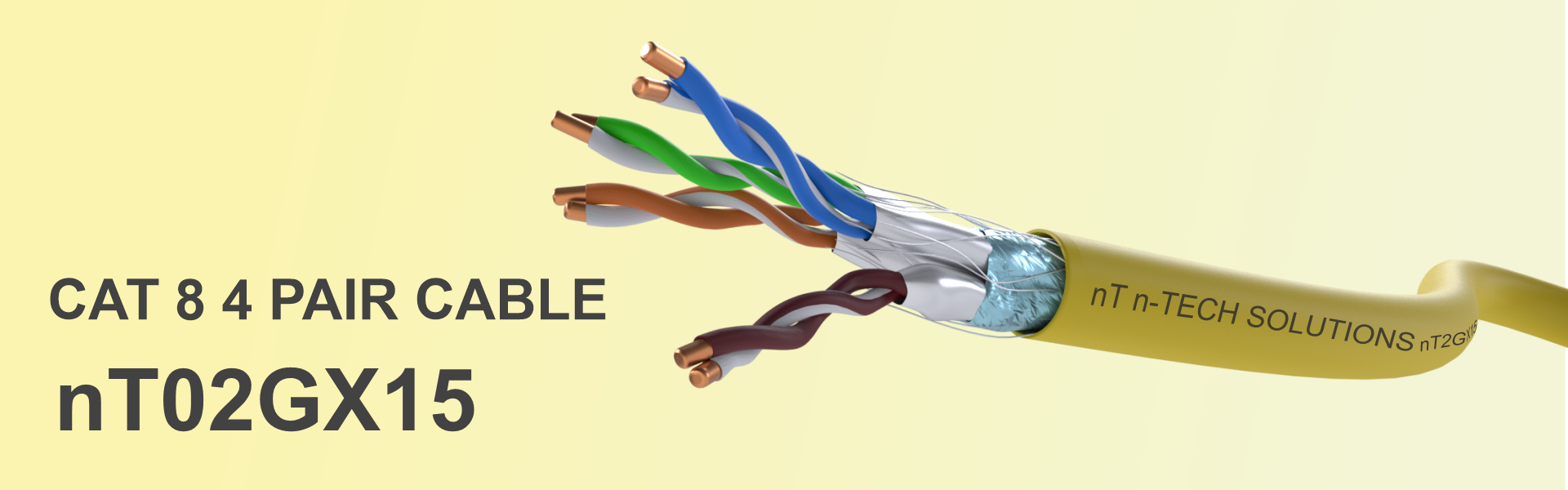

nT2GX15 CAT 8 Cable

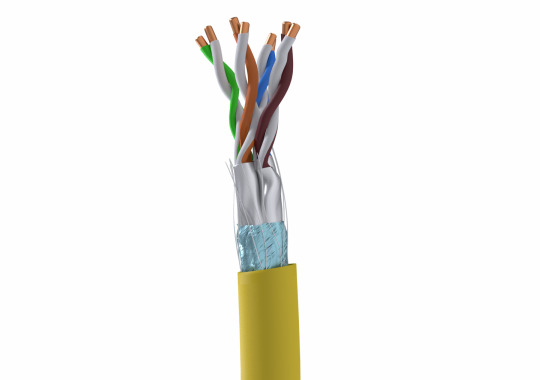

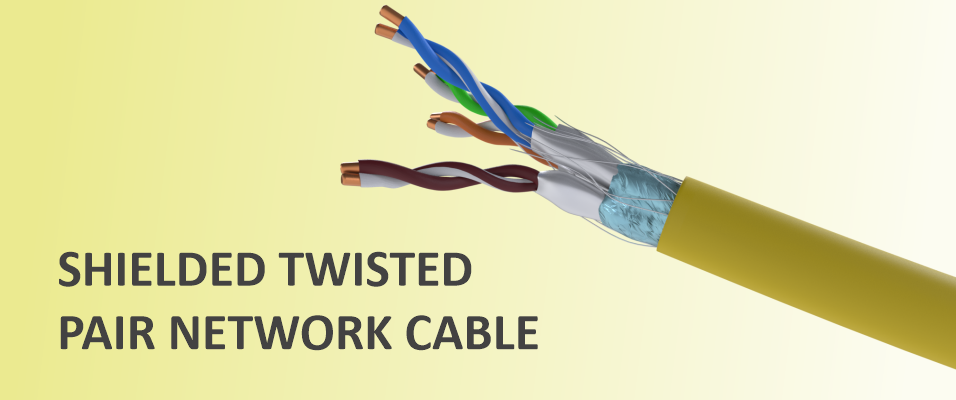

nT2GX15 CAT 8 Cable is shielded twisted pair network cable . Cat 8 shielded cable is the important part of the high speed structured cabling systems, . CAT 8 Shielded twisted pair Cable supports 25 Gbps standard. Each pair is aluminium foiled and overall outer aluminium foil and drain wire. This cable exceeds the requirements of TIA/EIA-568.C.2 Category 8 ISO/IEC Class E . It is a 4 pair 22 awg solid conductor cable . Each pair is coloured differently for identification . Available in 500 mtrs reel packing . Available in Yellow colour .



Specification

4-pair foiled twisted pair (FFTP) cable.
22 AWG solid copper conductor.
Supports 25 Gbps speed.
Colour coded Skin foam PE Insulation.
Outer Jacket LSZH – 8.4 mm.
500 Mtrs reel packing.
Available Colours Yellow.

Conductor Solid Bare Electrolytic Grade Copper
Conductor Size22 AWG

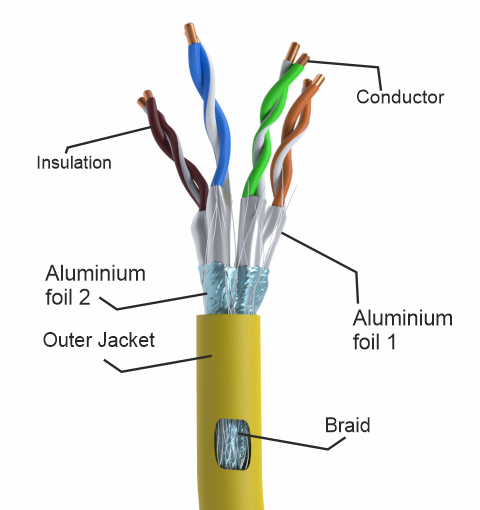

ShieldEach Pair foiled and overall foil and shield wire
 InsulationSkin Foamed PE
Insulation Size1.58 ± 0.05 mm

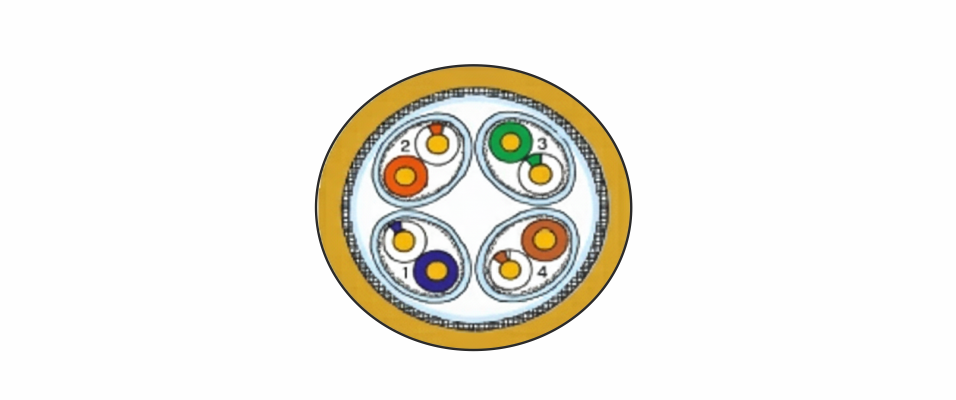

Twisted pair identificationColour coded 4 twisted pairs
JacketLSZH
Sheathing ColorYellow
Cable Diameter (Approx)8.4 mm
Speed 25 Gbps
Packing500 m reel
