Product Description

nT2GX12 CAT 6A Shielded Cable

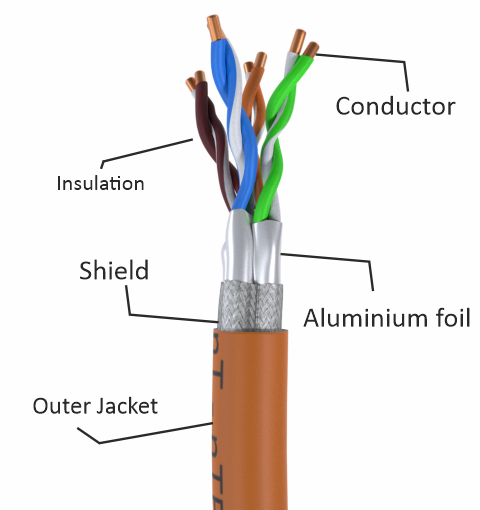

nT2GX12 CAT 6A Cable is shielded twisted pair network cable . Cat 6A shielded cable is the important part of the high speed structured cabling systems, . CAT6 A Shielded twisted pair Cable supports 10 Gbps standard. Each pair is aluminium foiled and overall outer aluminium foil and drain wire. This cable exceeds the requirements of TIA/EIA-568.C.2 Category 6 ISO/IEC Class E . It is a 4 pair 23 awg solid conductor cable . Each pair is coloured differently for identification . Available in 500 mtrs reel packing . Available in orange colour .



Specification

4-pair foiled twisted pair (FFTP) cable.
23 AWG solid copper conductor.
Supports 10 Gbps speed.
Colour coded Skin foamed PE Insulation.
Outer Jacket Pvc – 7.6 mm.
500 Mtrs reel packing.
Available Colours Orange.

ConductorSolid Bare Electrolytic Grade Copper
Conductor Size23 AWG

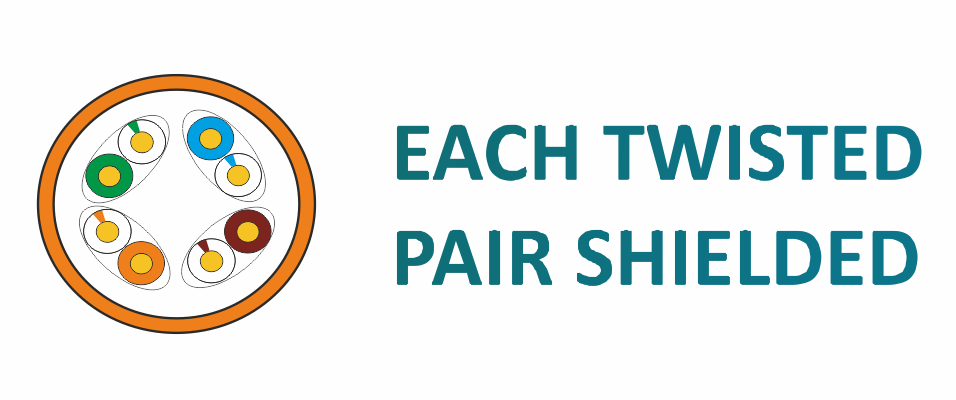

ShieldEach Pair foiled and overall foil and shield wire
InsulationSkin foamed PE
Insulation Size1.38 ± 0.05 mm
Twisted pair identification Colour coded 4 twisted pairs

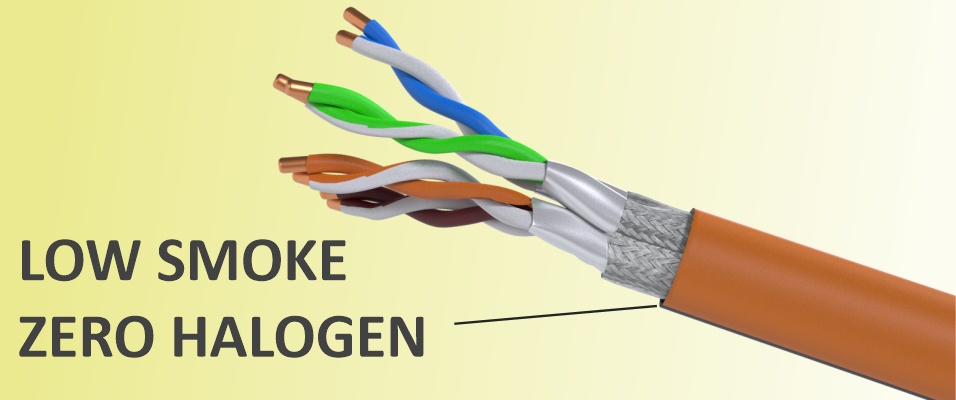

JacketLSZH
Sheathing ColorOrange
Cable Diameter (Approx)7.6 mm
Speed10 Gbps
Packing500 m reel
