Product Description

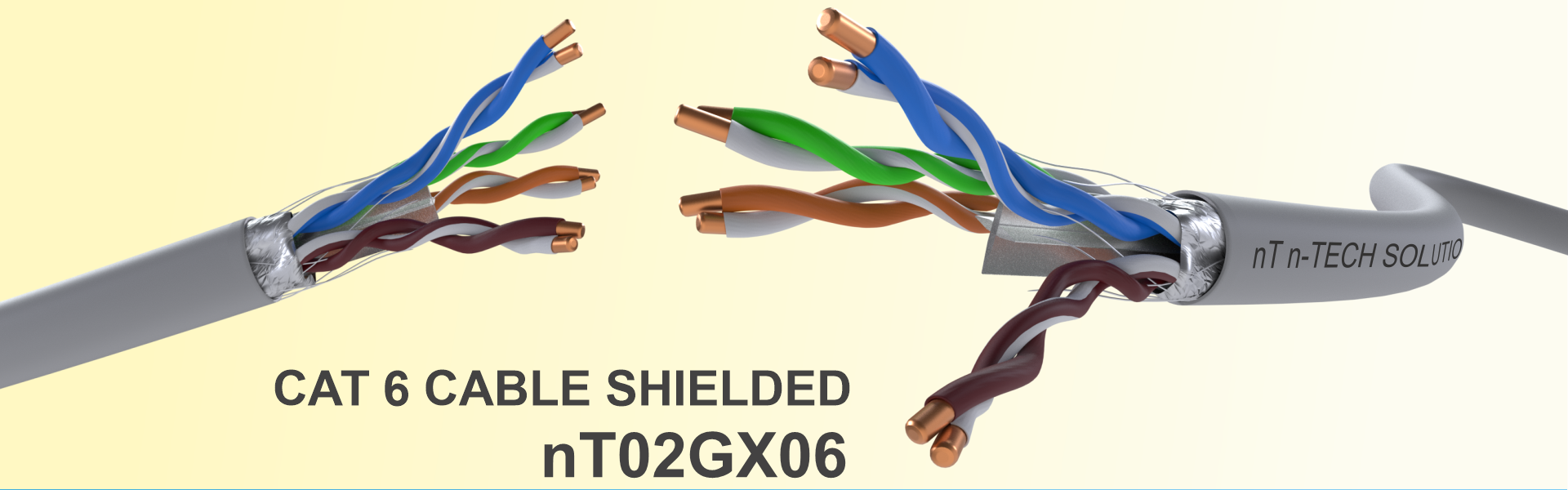

nT2GX06 CAT 6 Cable Shielded

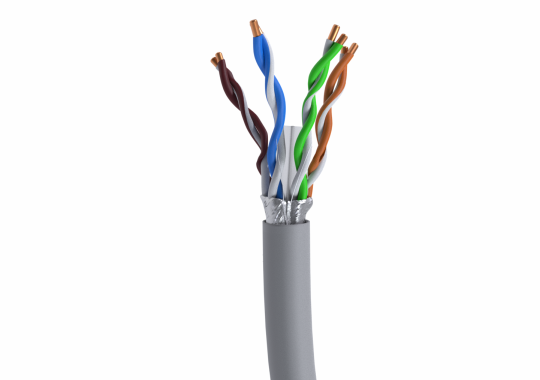

nT2GX06 CAT 6 Cable is shielded twisted pair network cable . Cat 6 cable is the important part of the structured cabling systems, . CAT6 STP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 250 Mhz. This cable exceeds the requirements of TIA/EIA-568.C.2 Category 6 ISO/IEC Class E . It is a 4 pair 23 awg solid conductor cable . It has a overall aluminium foil and drain wire and al shield . Al foil and shield protects signals from RF and EMI interference . Each pair is coloured differently for identification . Available in 305 mtrs reel . Available in Grey colours .



Specification

4-pair shielded foiled twisted pair (SFTP) cable .
23 AWG solid copper conductor .

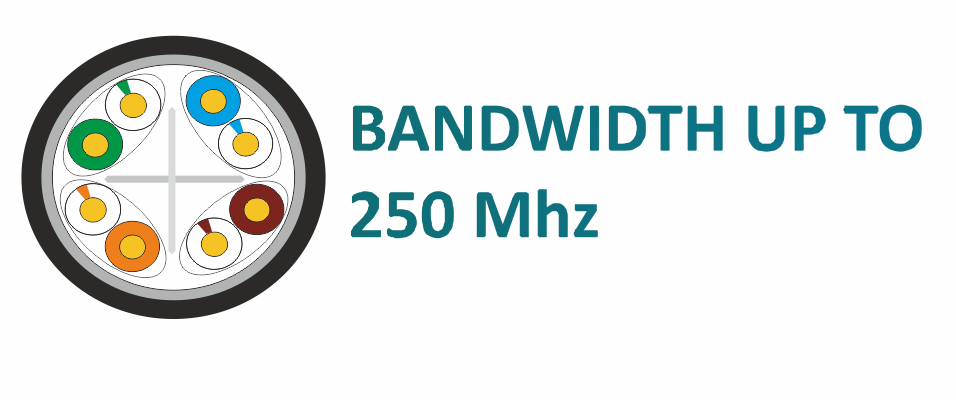

Supports Gigabit 1000 Base T and bandwidth up to 250 Mhz .
Colour coded PE Insulation ,
Outer Jacket Pvc – 6.3 mm ,
305 Mtrs reel.
Available Colours Grey .



ConductorSolid Bare Electrolytic Grade Copper
Conductor Size23 AWG
ShieldAl foil + draing wire + Al shield
InsulationPolyolefin
Insulation Size0.980 ± 0.05 mm
Twisted pair identificationColour coded 4 twisted pairs .
JacketPVC
Rated Temperature-10 to 80 degrees
Sheathing ColorGrey
Cable Diameter (Approx)6.3 mm
Speed1000 Base-T – 250 Mhz
Packing305 Mtrs reel
