Product Description

nT2GX03 CAT 6 Cable is unshielded twisted pair network cable . Cat 6 cable is the important part of the structured cabling systems, . CAT6 UTP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 250 Mhz. This cable exceeds the requirements of TIA/EIA-568.C.2 Category 6 ISO/IEC Class E . It is a 4 pair 23 awg solid conductor cable . Each pair is coloured differently for identification . Available in 305 mtrs easy pull box . Available in Grey ,Yellow and Blue colours .



Specification

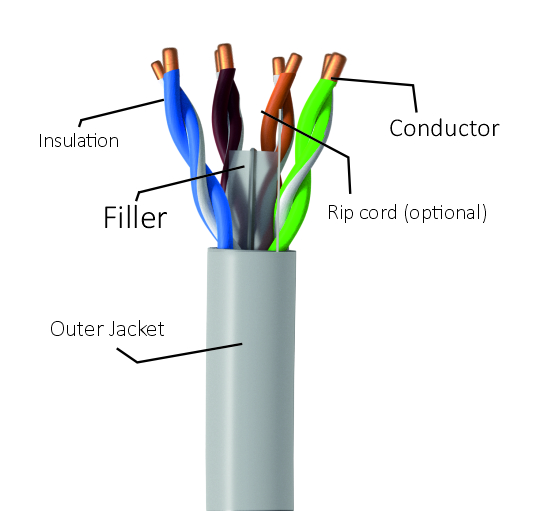

4-pair unshielded twisted pair (UTP) cable

23 AWG solid copper conductor

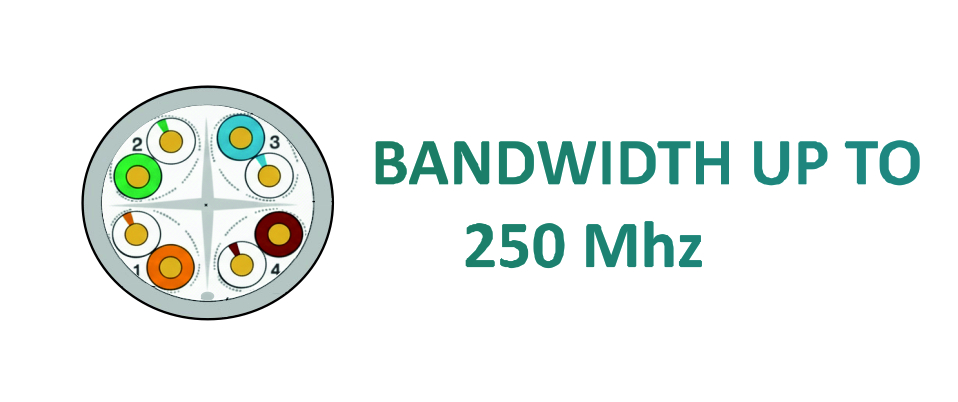

Supports Gigabit 1000 Base T and bandwidth up to 250 Mhz

Colour coded PE Insulation

Outer Jacket Pvc – 5.9 mm

305 Mtrs Easy Pull Box

Available Colours Grey , Yellow , Blue .

Conductor Solid Bare Electrolytic Grade Copper
Conductor Size23 AWG
InsulationPolyolefin
Insulation Size0.980 ± 0.05 mm

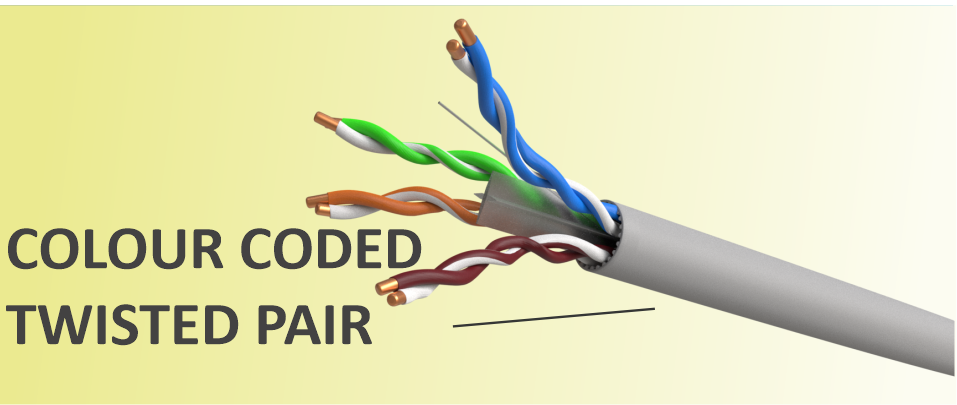

Twisted Pair IdentificationColour coded 4 twisted pairs
JacketPVC
Rated Temperature-10 to 80 degrees
Sheathing ColorGrey/Blue/Yellow
Cable Diameter (Approx)5.9 mm
Speed1000 Base-T – 250 Mhz
Packing305 Mtrs Pull box

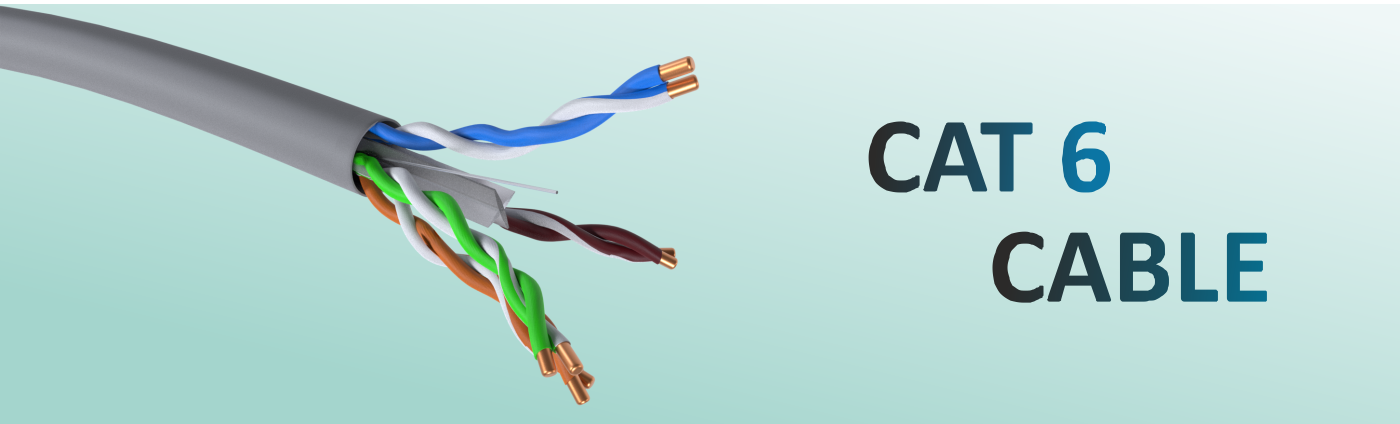

Main Image
