Product Description

nT02BC01 20 AWG speaker cable

nT02BC01 is a round installation 20 awg speaker cable . Made up of annealed oxygen free tin coated copper wires- 7 strands of 0.32 mm tc . The conductors are identified positive and negative by black and red insulation . with annealed and ofc copper strands and low resistance the cable is best suitable for hi end audio installations .The cable is characterize by high flexibility and increased transmission parameters. In order to offer uniform capacitance throughout length the distance between the two conductors is maintained uniformly. Meter marking is provided at every meter . cable can be installed in channels, cable trays or in plaster. Colour light grey .



Specification

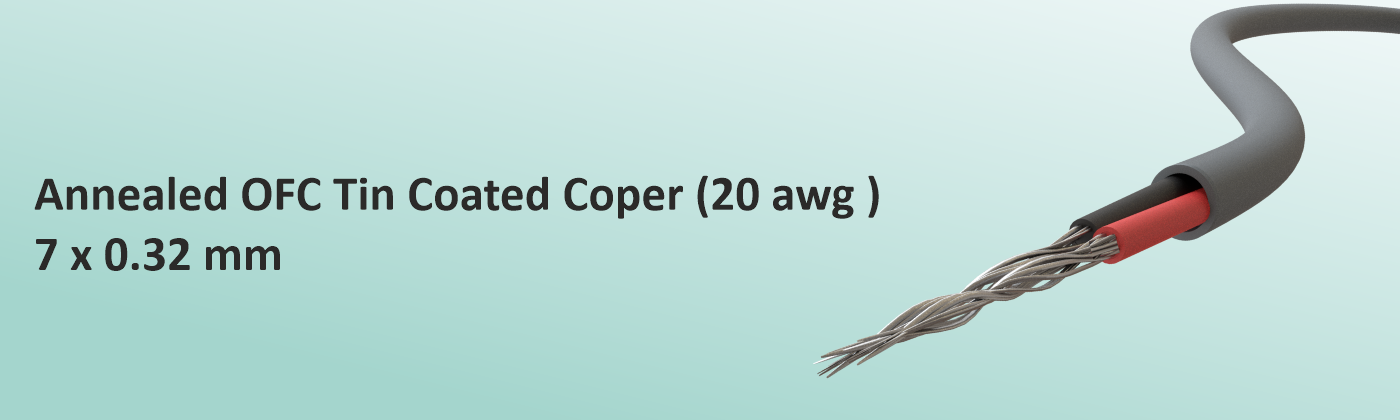

Annealed OFC Tin Coated Coper (20 awg ) 7 x 0.32 mm

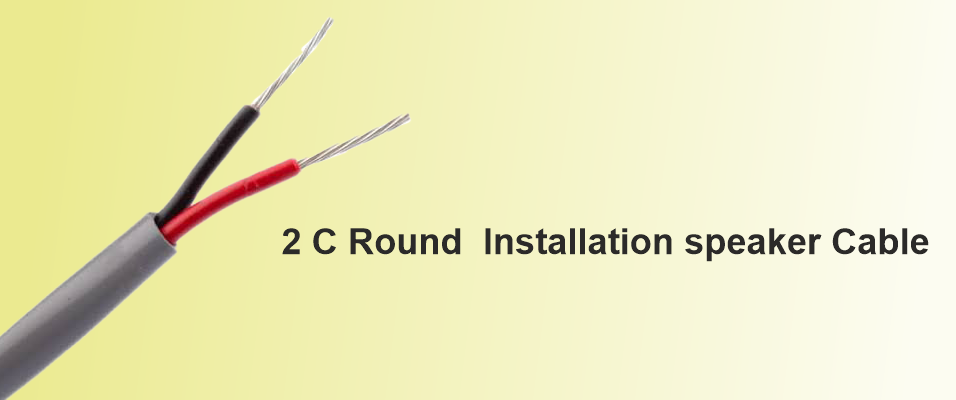

2 C Round Installation speaker Cable
CM fire resistance Rated Jacket suitable for In wall installations
Positive and Negative identification by Colour Black and Red Insulation
Cable od 4.6 mm
Meter marking at every meter for easy length calculation
Packed in 300 m easy Pull Box .







ConductorAnnealed Tin Coated Copper- OFC
Conductor Gauge2 c – 7 x 0.32 mm ( 20 awg )
 Cable Shape Round
Insulation PVC – Red / Black -1.65 mm (0.33 mm thick )
Cable OD 4.6 MM (0.95mm Thick )
Cond Ohm/m32.4 ohm
Conductivity98 %
Current A16
Rated Voltage300 V
 Inductance1.441- ?H/M
Capacitance 66.2824 pF/M
Packaging300 M easy pull Boxx
ColourLight Grey
