Product Description

Audio cable slim 24 Awg is a digital / Analog Audio cable –

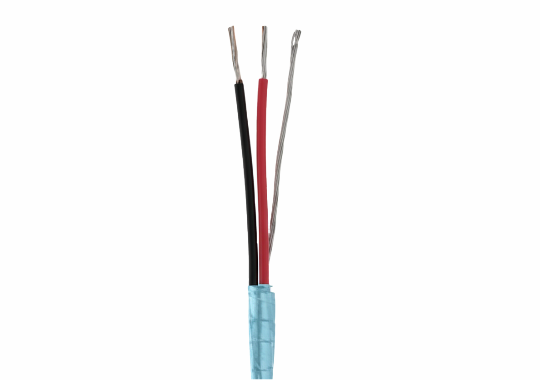

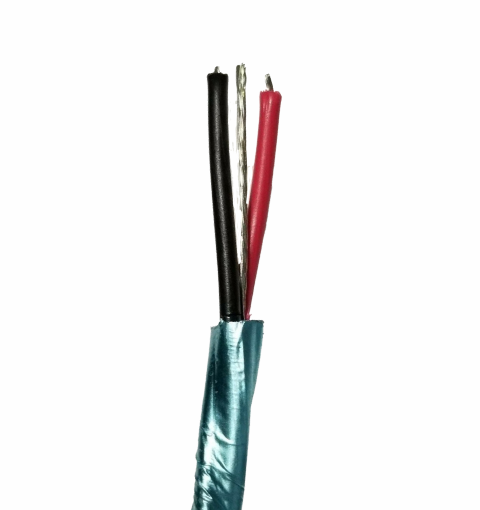

The cable is 100 % shielded with aluminium Foil – to avoid all the external disturbance and emi / rf interference . The cable is made up of 1 pair (2c) of 24 awg cable and a 100 % aluminium shield coverage and a drain wire – Each core has 7 strands of 0.254 mm annealed OFC Copper – with a insulation of Foamed PE . High number of strands and OFC annealed copper makes the cable more flexible and adds ease in making connections and soldering . The slim construction makes the cable best suitable for patch cables , in rack connectivity . The cable has meter marking at every meter for easy length calculations . Available in black colour. The cable is best suited for Auditoriums , studios , recording studio , stage shows and events .

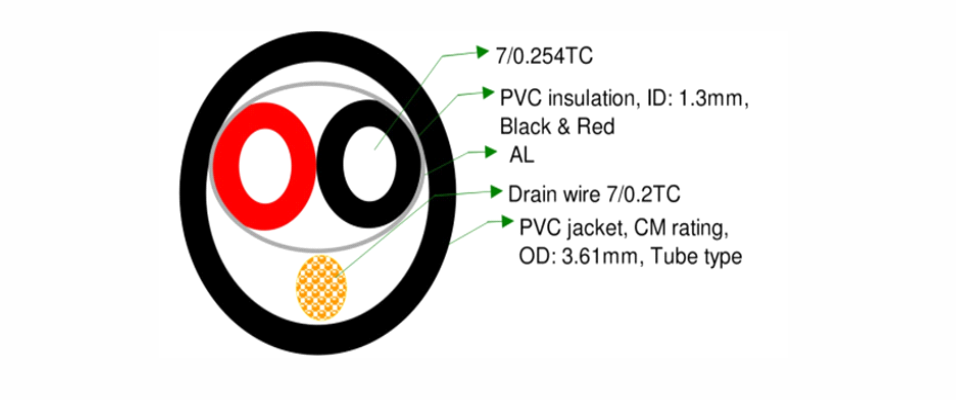

Specification

Annealed OFC Tinned Coper 7 x 0.254 mm (24 awg ) ,

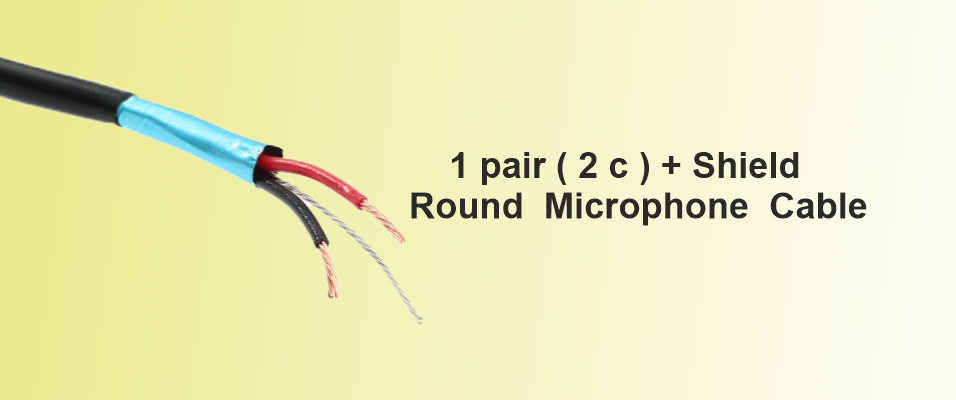

1 pair ( 2 c ) + Shield Round Microphone Cable ,

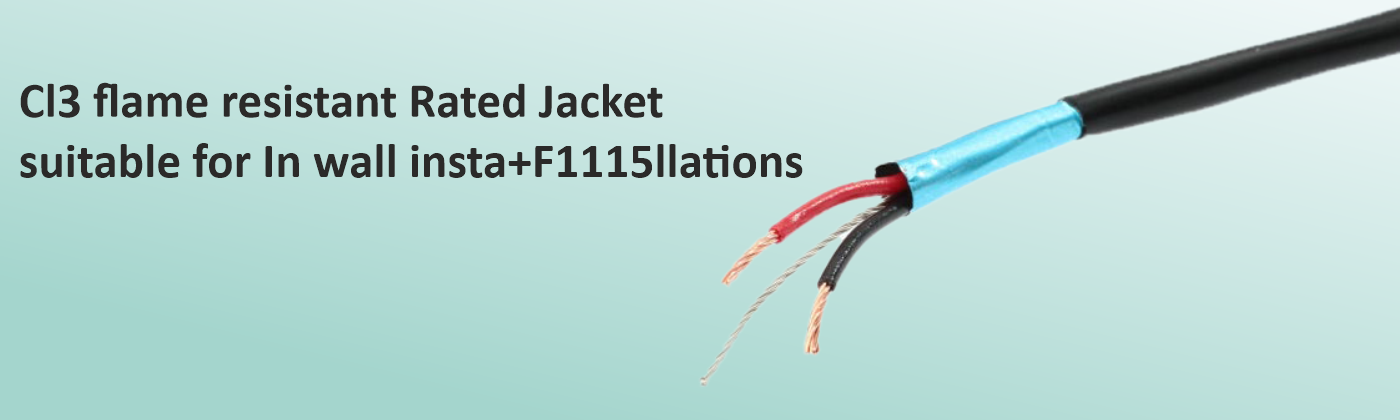

CL3 flame resistant Rated Jacket suitable for In wall insta+F1115llations ,
100 % AL Foil Shield + Drain Wire 7 x0.20 mm – 24 awg Tinned Copper – to avoid EMI and RF Interference ,
2 c identification by Colour Red and Black Insulation ,
Cable od 3.6 mm ,
Meter marking at every meter for easy length calculation ,
Packed in 300 m easy Pull Box .
Available colour Black .

ConductorAnnealed OFC Tinned Copper
Conductor Gauge2 c – 7 x 0.254 mm ( 24 awg )
Cable Shape Round
 InsulationPE – Red / Black -1.3 mm
ShieldL Foil + Annealed OFC Tinned Copper 7 x 0.20 mm – drain wire
Cable ODPVC – 3.6 MM
Cond Ohm/km52.1 ohm
Conductivity98 %
Current A12
 Inductance1.5114 uH/m
Capacitance151.6347 Pf/m
Packaging300 M easy pull Boxx
Colour Black
