Product Description

Microphone cable slim 28 Awg is a digital / Analog Audio cable – the cable is 100 % shielded – to avaoid all the external disturbance and emi / rf interference . The cable is made up of 1 pair (2c) of 28 awg cable and a 100 % shield coverage – Each core has of 10 strands of 0.10 mm annealed OFC Copper – with a insulation of Foamed PE . High number of strands and OFC annealed copper makes the cable more flexible and adds ease in making connections and soldering . The slim cnstruction makes the cable best suitable for patch cables , in rack connectivity . The cable has meter marking at every meter for easy length calculations . Available in black colour. The cable is best suited for Auditoriums , studios , recording studio , stage shows and events .

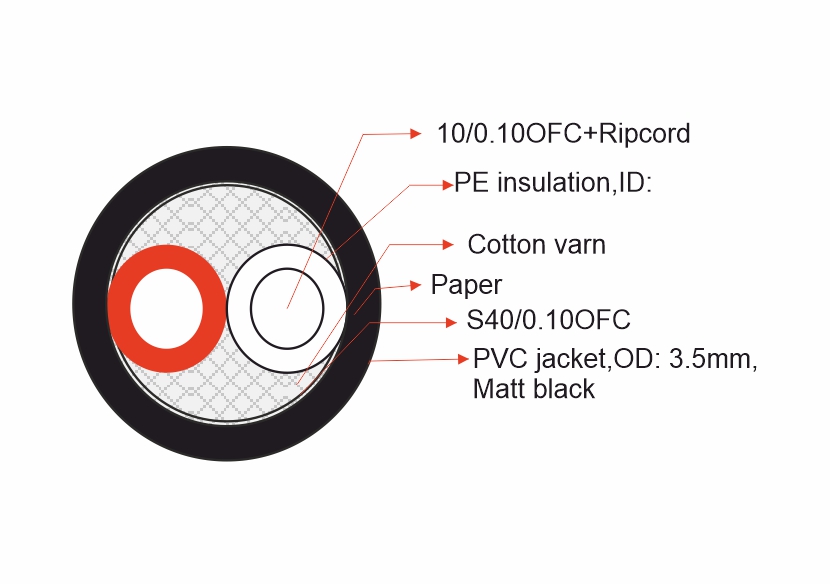

Specification

Annealed OFC Tinned Coper 10 x 0.10 mm (26 awg )
1 pair ( 2 c ) + Shield Round Microphone Cable
CL3 flame resistant Rated Jacket suitable for In wall installations
100 % OFC Copper Shield – to avoide EMI and RF Interference
2 c identification by Colour Red and White Insulation
Cable od 3.5 mm
Meter marking at every meter for easy length calculation
Packed in 300 m easy Pull Box .
Available colour Black .

Conductor Annealed OFC Copper
Conductor Gauge 2 c – 10 x 0.10 mm ( 26 awg )
Cable Shape Round
Insulation PE – White / Red -1.05 mm
Shield  Annealed OFC Copper 40 x 0.10 mm – 100% coverage
Cable OD PVC – 3.5 MM
Cond Ohm/km 235.2 ohm
Conductivity 98 %
Current A  5
Inductance 1.612 uH/m
Capacitance 54.1674 Pf/m
Packaging 300 M easy pull Boxx
Colour Black

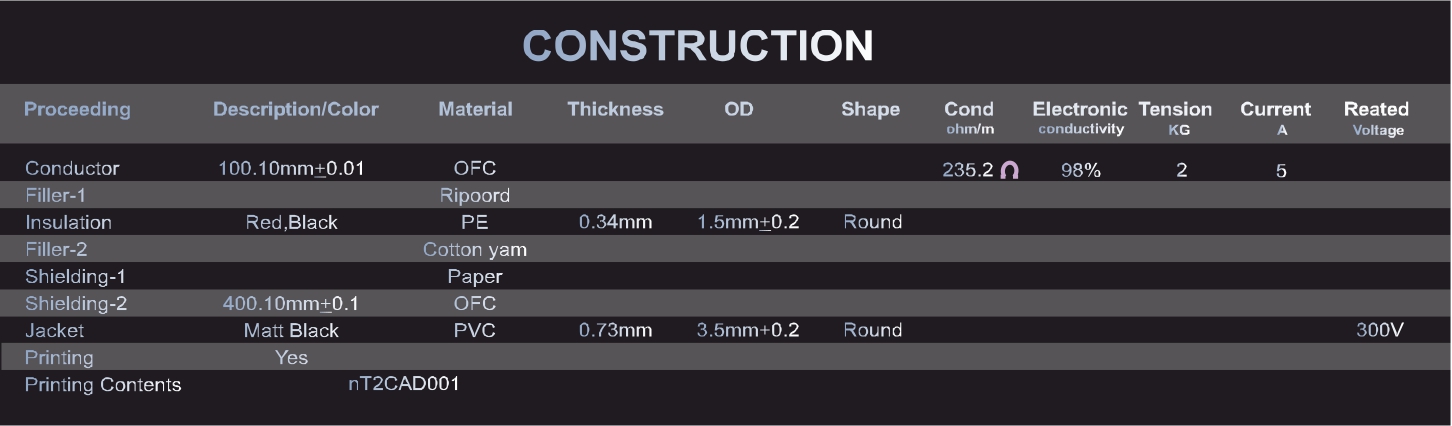

Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
