Product Description

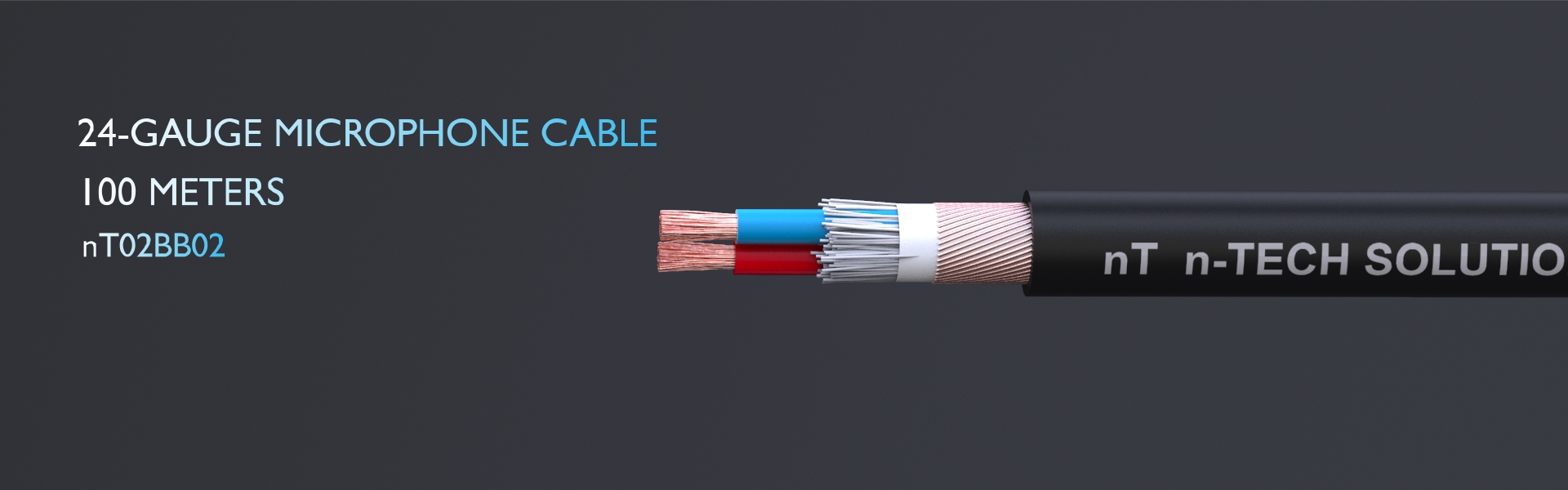

nT02BB02 Mic cable is a flexible balance audio cable

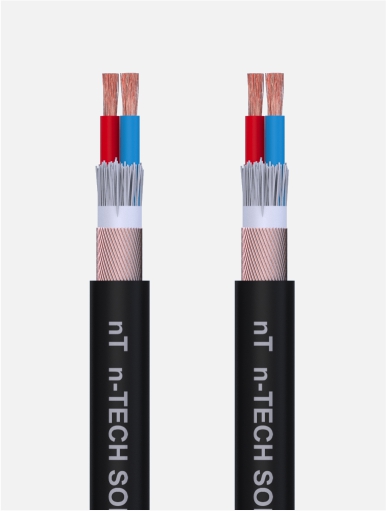

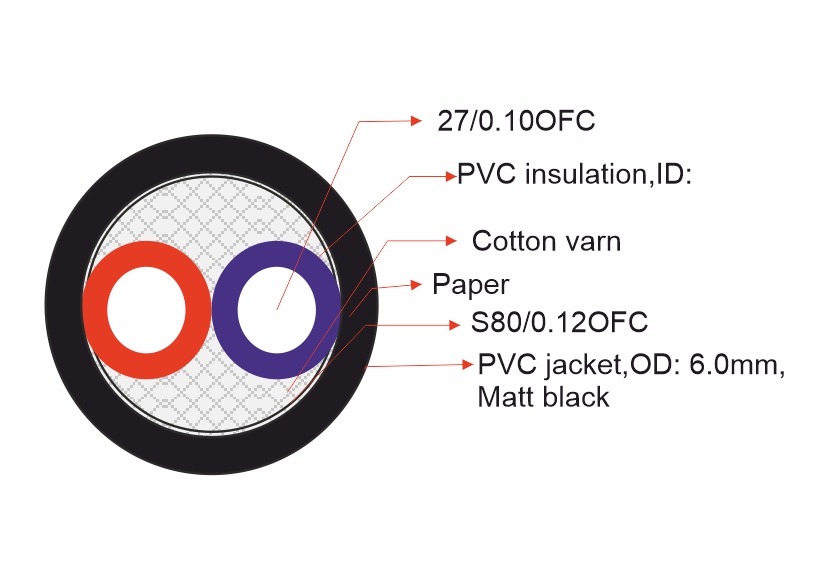

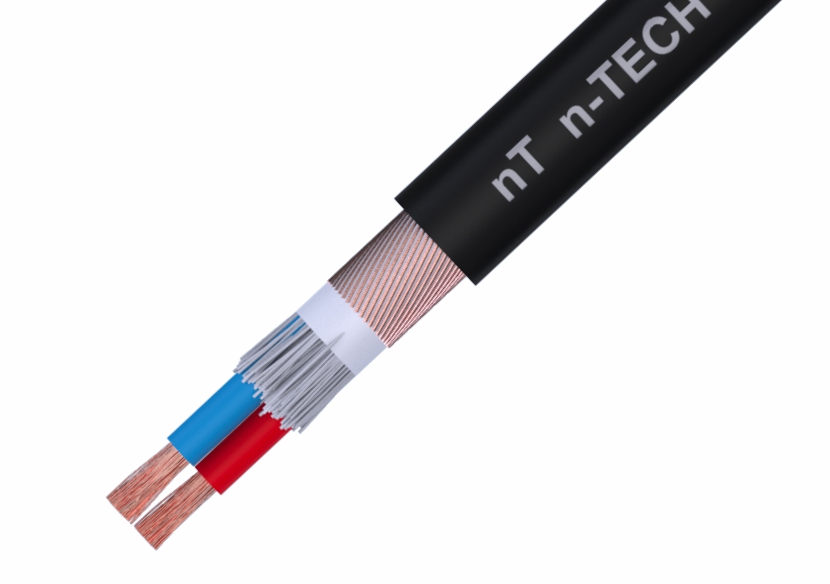

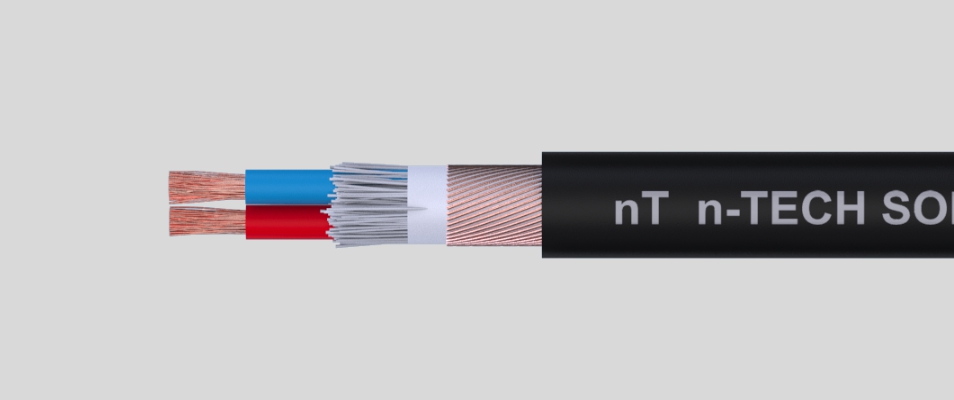

Mic cable is a flexible balance audio cable with 1 twisted pair + shield . Each pair is made of 2 wires twisted together marked red and blue and the conductor is annealed fine copper strands of 24 awg (27×0.10mm) . The shield is spiraled around the twisted pairs – the shield is made up of fine strands (80 * 0.12) . The overall insulation of flexible pvc is of od 6.00mm – .The cable is well suited for audio system integrations like auditorium , studio , education , medical , events ….



Specification

Annealed OFC Coper 27 x 0.10 mm (24 awg )
1 pair ( 2 c ) + Shield Round Microphone Cable
CL3 flame resistant Rated Jacket suitable for In wall installations
100 % OFC Copper Shield – to avoid EMI and RF Interference
2 c identification by Colour Blue and Red Insulation
Cable od 6.0 mm
Meter marking at every meter for easy length calculation
Packed in 300 m easy Pull Box
Available colour Black

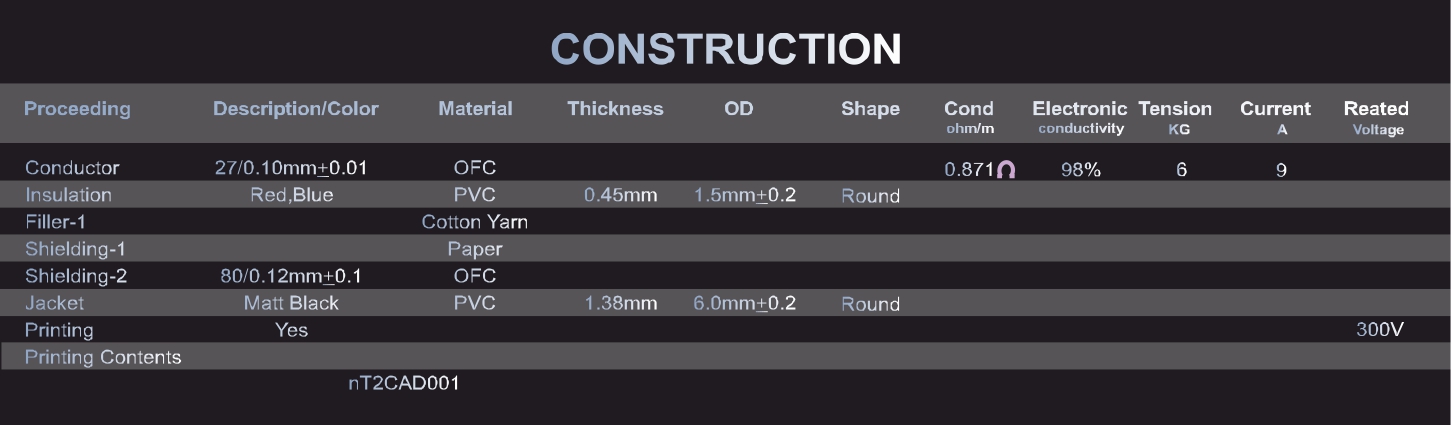

ConductorAnnealed OFC Copper
Conductor Gauge2 c – 27 x 0.10 mm (24 awg )
Cable ShapeRound
InsulationPvc – Red / Blue -1.5 mm
ShieldAnnealed OFC Copper 80 x 0.12 mm – spiral coverage
Cable ODPVC – 6.0 MM
Cond Ohm/km87.1 ohm
Conductivity98 %
Current A9
Inductance1.3992 uH/m
Capacitance162.0003 Pf/m
Packaging300 M easy pull Boxx
ColourBlack
