22AX02 HDMI 4:4 MULTI-MATRIX-VW

Product Description

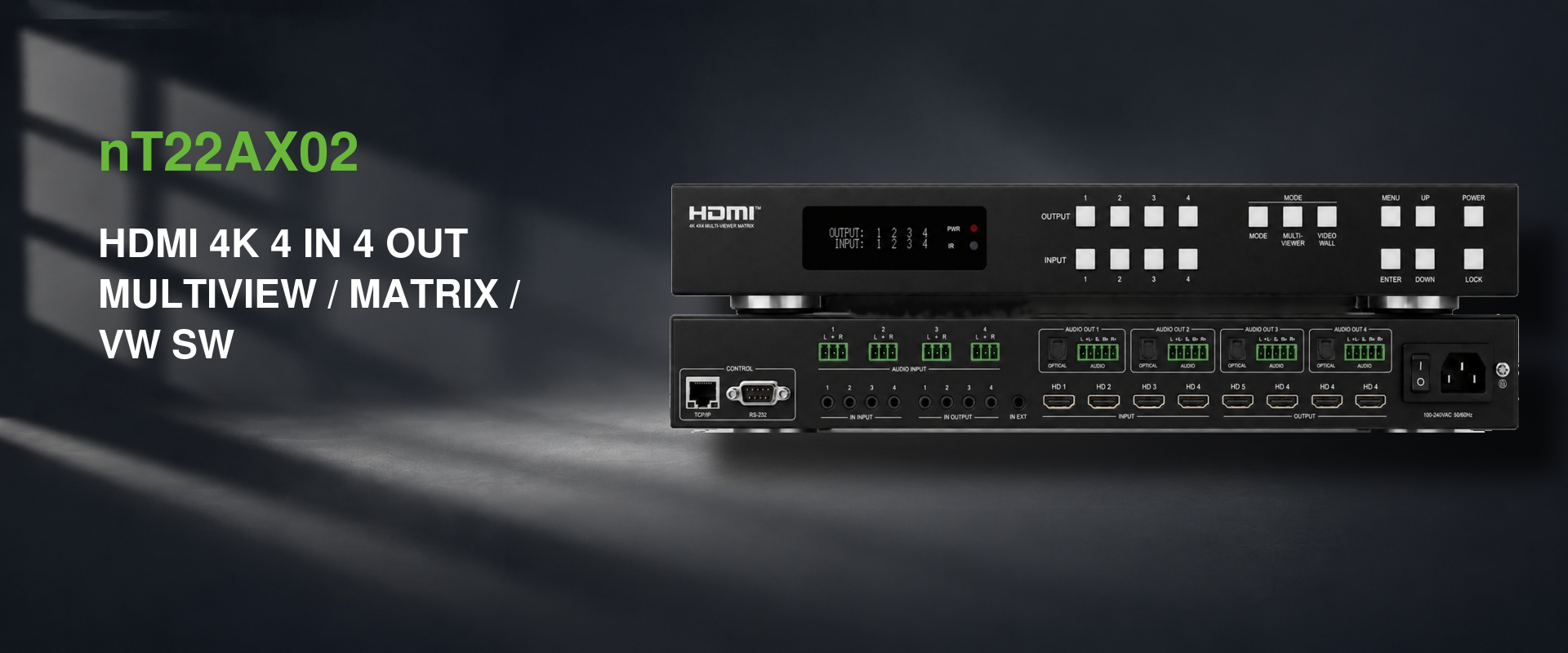

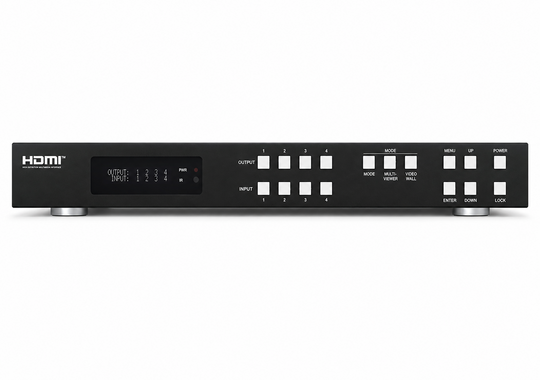

HDMI 4K 4 IN 4 OUT MULTIVIEW / MATRIX / VW SWITCHER
The nT22AX02 18Gbps 4×4 Seamless Multiview – Matrix – Video Wall Switcher is a perfect solution for video wall and multiview control system from 4 HDMI sources to 4 HDTV displays. It has video wall and multi-viewer functions with multiple display modes. 4×4 IR matrix, audio embedded and de-embedded are also supported. Video resolution is up to 4K@60Hz 4:4:4. Each of the sources can be individually scaled. And seamless switching ensures a smooth picture transition without frame loss. This matrix can be controlled via front panel buttons, IR remote, RS-232 and Web GUI.

Specification

• HDCP 2.2 compliant
• Support video resolution up to 4K@60Hz 4:4:4and 18Gbps video bandwidth, as specified in HDMI 2.0
• Supports Video Wall / Matrix and Multiviewer .
• Support 12 display multi-viewer mode, and 9 video wall mode
• HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS- EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
• 4 HDMI In/4 HDMI Out/4 Audio In/4 Spdif-Audio Out/4 IR In/4 IR Out .
• Support CEC control, and multiple video resolution output
• Advanced EDID management
• Control via front panel buttons, IR remote, RS-232, and Web GUI



INPUT PORTS 4 X HDMI + 4 X IR + 4 X AUDIO
OUTPUT PORTS 4 X HDMI + 4 X IR + 4 X AUDIO + SPDIF
CONTROL IP / IR / RS232 / PANEL BUTTON
COMPLIANCE HDMI 2.0 / HDCP 2.2
VIDEO RESOLUTION 4K2K@60Hz-RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 -8/10/12-bit
VIDEO BANDWIDTH 594MHz/18Gbps
POWER CONSUMPTION 25W (Max) Operating Temperature
IR Wideband 20K-60KHz – 12Vp-p
ESD PROTECTION IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) Input ports

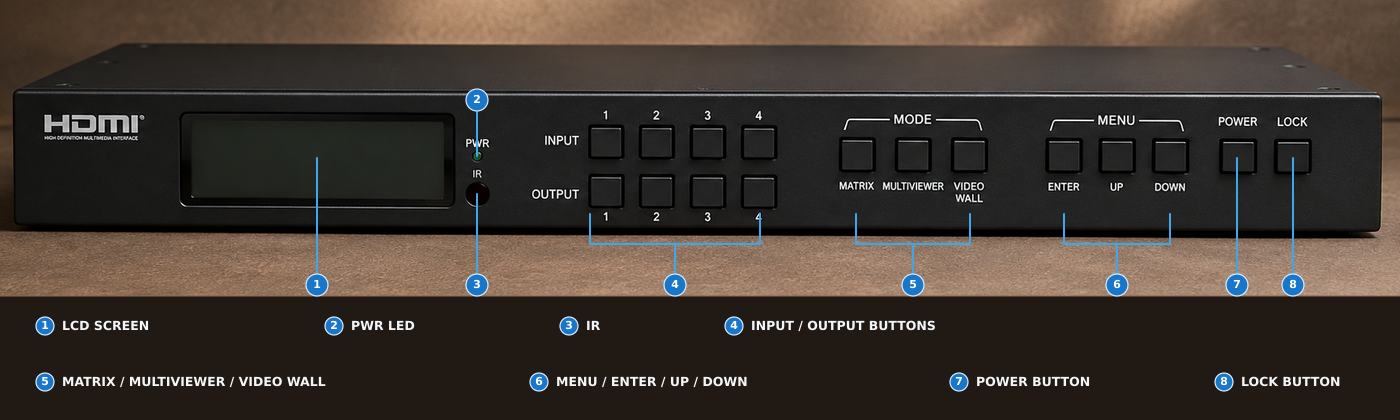

Main Image
