21AX02 8 IN 8 OUT VIDEO WALL MATRIX

Product Description

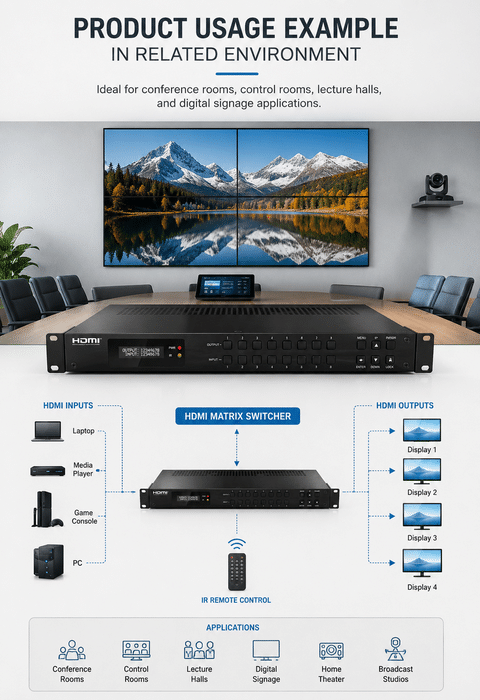

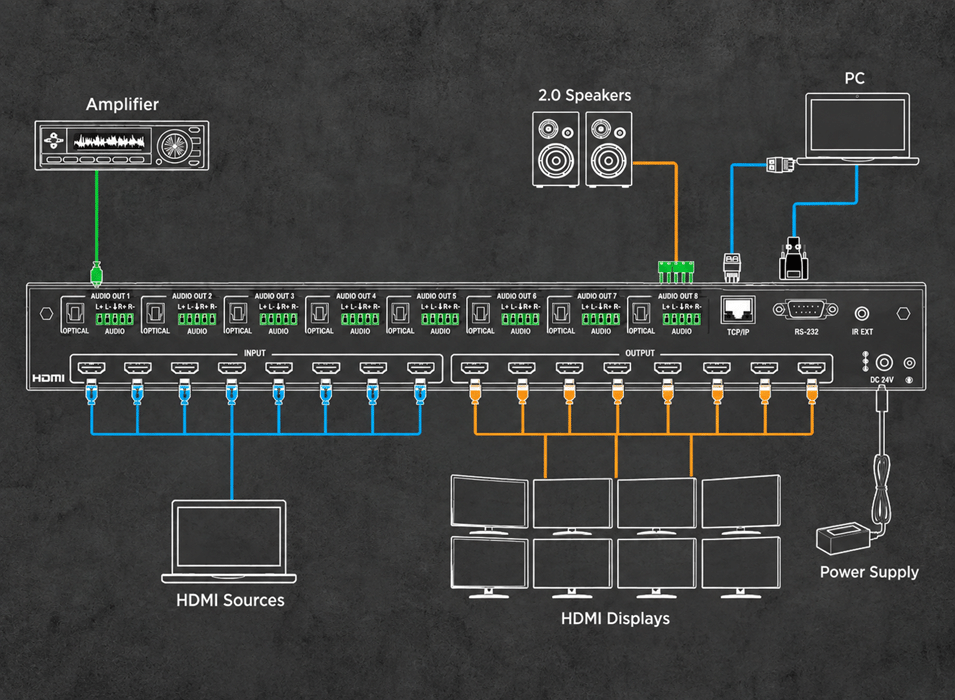

nT21AX02 4K60Hz 8×8 Seamless Video Wall- Multiview-Matrix Switcher is a perfect solution for video transmission from 8 HDMI sources to 8 HDTV displays. Video resolution is up to 4K@60Hz 4:4:4. Each output supports resolution downscaling individually. It features video wall, multi-view function and built-in WEB server. It also has 8 routes L/R audio output channels to output balanced audio. And seamless switching ensures a smooth picture transition without frame loss. This matrix can be controlled via front panel buttons, IR remote, RS-232 and Web GUI.

Specification

• Supports four different modes: Matrix mode/ Multiview mode / Video wall mode
• HDCP 2.2 compliant
• Support video resolution up to 4K@60Hz 4:4:4 and 18Gbps video bandwidth, as specified in HDMI 2.0b
• Support seamless switching
• Support 12 display categories in multi-view mode
• Support 8 route L/R balanced audio output
• Each output supports horizontal mirror and vertical mirror
• Blank screen, blue screen and output off are optional when no signal outputs
• HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
• Support CEC control, and multiple video resolution output



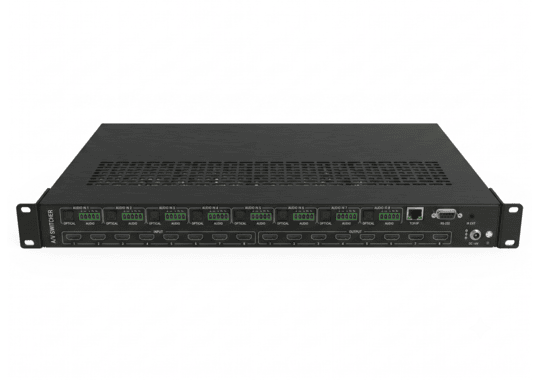

INPUT PORTS 8 × HDMI INPUT
OUTPUT PORTS 8 × HDMI/8 x OPTICAL / 8 X LR AUDIO
CONTROL PORTS 1 RS-232 / 1 IP / 1 IR
COMPLIANCE HDMI 2.0b / HDCP 2.2
VIDEO RESOLUTION Up to 4K@60Hz 4:4:4 / 594MHz/18Gbps / RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
POWER CONSUMPTION 70W (Max)
IR 5Vp-p / Wideband 20K-60KHz
AUDIO FORMAT HDMI -LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Optical Outputs: LPCM 2.0CH/Dolby/DTS 5.1CH
Balanced Analog Audio Outputs: LPCM 2CH
ESD PROTECTION IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
