1BF09 SDI BNC M TO HD BNC M

Product Description

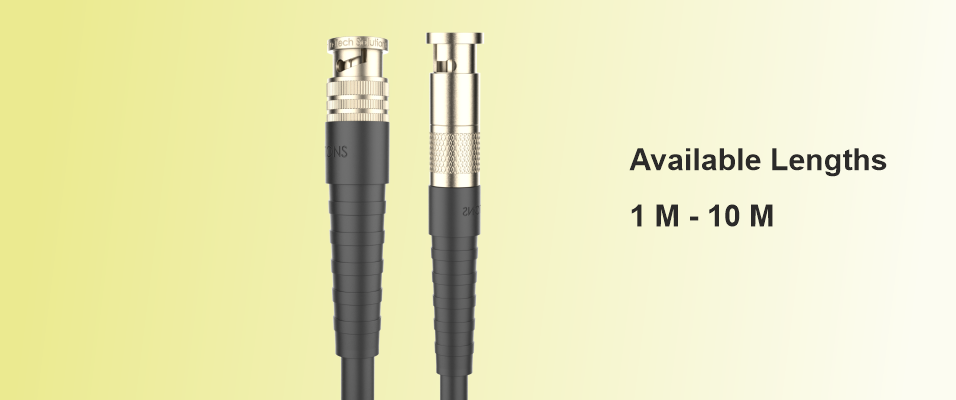

1BF09 SDI M TO SDI HD BNC M SLIM CABLE

SDI M to SDI High Density BNC M cable is made of slim SDI Cable , the cable supports 12G Signals . The cable supports connection between normal BNC to High Density BNC devices . BNC Connector and High Density BNC Connectors are made of Brass and teflon material . The connectors are nickel coated and pin is gold plated . The connectors and cables are 75 ohms and supports up to 12 G Signals and resolutions up to 4k 60 Hz . The connectors are machine crimped to the cable . The coaxial cable conductor is 23 awg and shielding is 95% coverage for the best performance . Colour : Black . Available Length 1 – 10 Mtrs .

Specification

* Construction of the cable – coaxial cable ,with center conduction 23 awg copper + foamedpe + al foil + shielding tinned copper up to 95% + pvc
* Machine Crimped BNC M Connector with strain relief * Machine Crimped High Density BNC M Connector with strain relief * Nickel plated body and gold plated pins
* Supports 75 Ohms .
* Support Video and Audio Signals .
* Supports 4K 60 Hz resolutions
* Speed 12 G * Available Lengths – 1-10 Mtrs

Connector A BNC M Connector
Housing Brass + PVC Strain relief
Coating Nickel / Gold
Connector B High Density BNC M Connector
Housing Brass + PVC Strain relief
Coating Nickel / Gold
Connection Type Machine C Crimping
Cable  Coaxial Cable
Ohms 75
Resolution 4K 60 Hz
Speed 12 G
Center Conductor Copper 23 AWG
Shield 95 % Tin Coated Copper
Colour Black
 Length Available 1 – 10 mtrs
