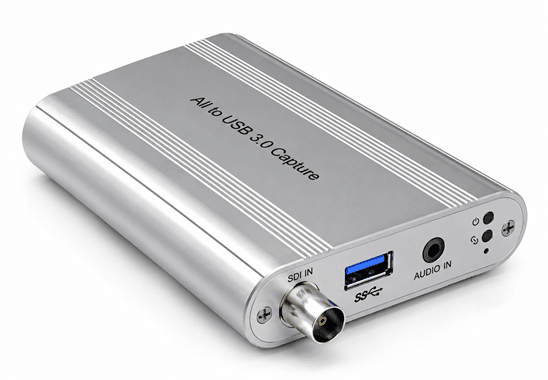

18BX03 HDMI+SDI USB 3.0 UVC GRABBER

Product Description

nT18BX03 has a superior performance, superior compatibility, easy to carry,
simple installation and many other features. It can capture HDMI, DVI (VGA,
YPbPr, AV) and SDI input and output signal, video resolution the maximum
up to 1920×1200. It compatibles Windows, Linux, Mac OS X operating system
and USB3.0 interface. It compatibles USB3.0 chipset (Intel, Renesas, ASMedia,Fresco Logic etc.), compatible with PCIe Gen 1.1 x1 expansion via USB3.0 interface. The product meets UVC and UAC standard. Simple plug and play, no driver and setting installation required

Specification

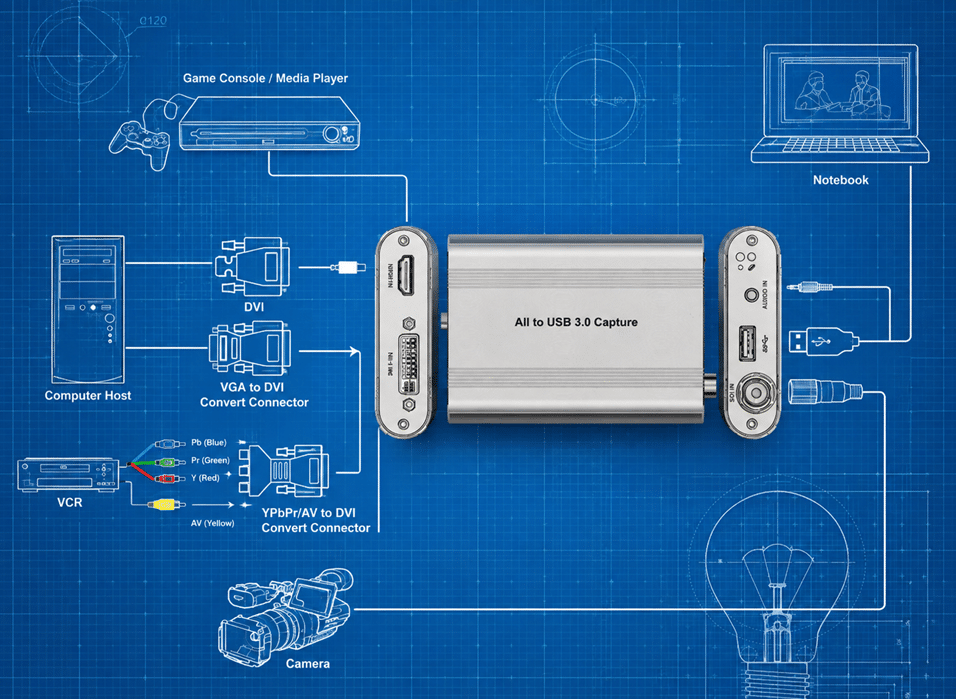

• Supports AV, YPbPr, VGA, DVI, HDMI and SDI video input capture.
• Supports input interface automatic recognition.
• Supports resolution 480i~1920×1200 input format video capture.
• Supports AV, YPbPr, VGA and DVI analog stereo audio inputs.
• Compatibles Windows, Linux, OS X operating systems.
• Compatibles USB3.0 about transmission rate up to 300~350MB/s.
• Compatibles VLC, OBS, XSPLIT and AMCAP etc. PC capture software.
• It can automatically detect the input video format, adjust the set output size
and frame rate.
• Simple plug and play, no drive and setting installation required



HOST PORT 1×USB [USB Type A, USB3.0 — 300~350MB/s][S/PDIF]

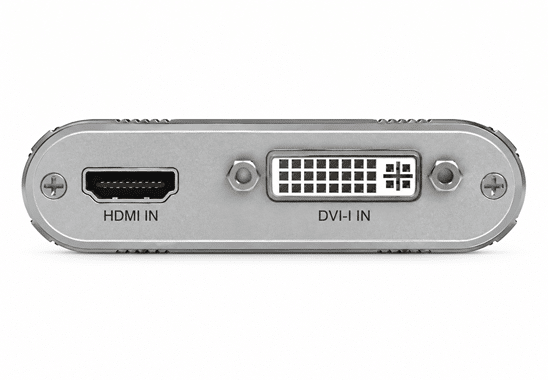

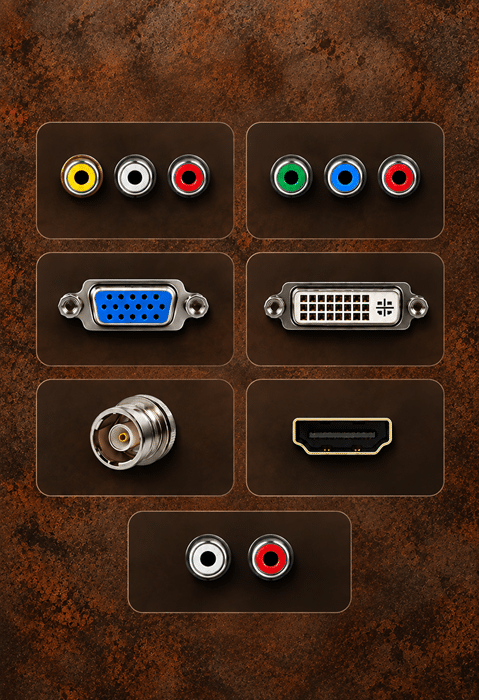

INPUT PORTS 1×DVI[VGA/YPbPr/AV],1×HDMI,1×SDI,1×AUDIO
INPUT RESOLUTION 1080p24/25/30/50/60 /
OUTPUT RESOLUTION 1920×1200
VIDEO RESOLUTION 480i ~1080P@50/60Hz, 4K2K@24/30Hz, 4K2K@60Hz
OS SUPPORTED Windows 7/8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above)s
AV CAPTURE UVC (USB video class) and UAC (USB audio class)standard
SOFTWARE COMPATIBILITY VLC, OBS, XSPLIT and AMCAP etc. PC capture software etc.
OPERATING TEMPERATURE 32 – 104°F / 0 – 40°C
