17HA01 USB 3.0 MATRIX 4X4 SWITCHER

Product Description

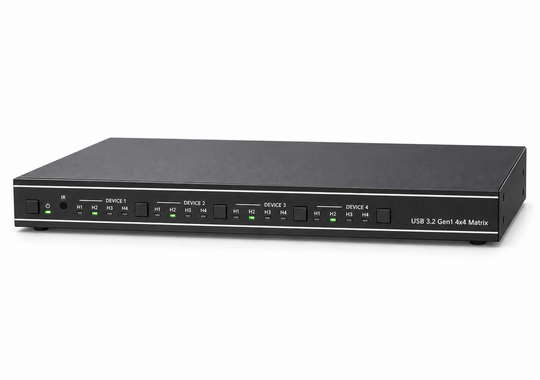

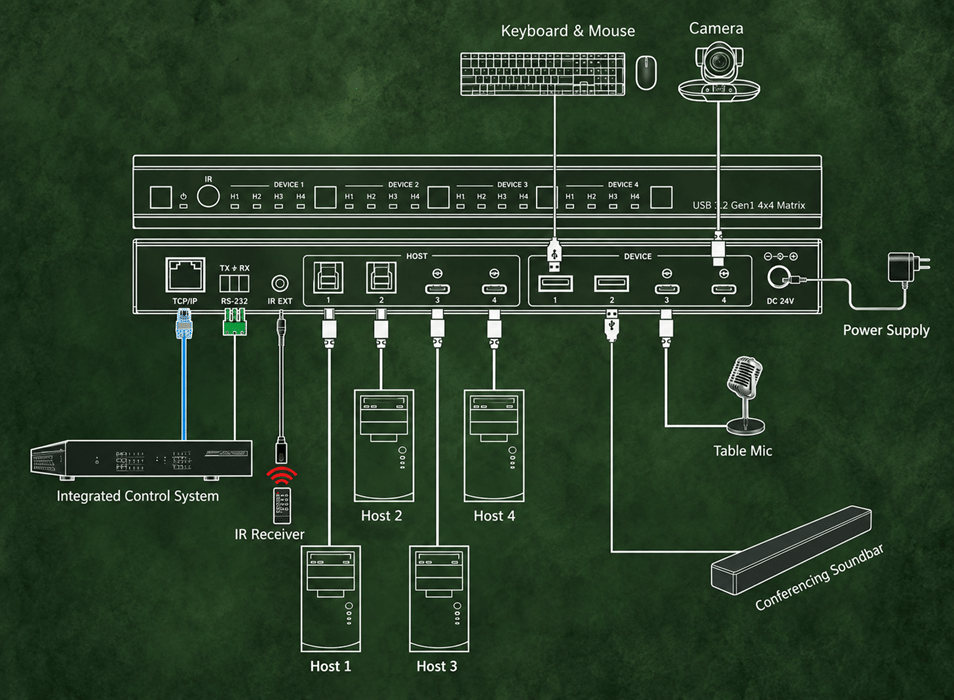

nT17HA01 is a 4×4 matrix allowing 4 USB 3.2 Gen1 devices to be shared between 4 host computers. It supports plug-and-play, and allows for a neat and tidy installation – the connecting cables are bundled to save the extra cost of purchasing USB cables. It is USB 3.2 Gen 1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB 1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras. In addition, It also features TCP/IP port, RS-232 command port and select buttons, which can simplify desktop layout and allow the desired routes to be selected manually. With its compact and all-in-one design, you can create a space saving, convenient and productive work environment.

Specification

• Enables 4 computers to share 4 USB 3.2 Gen1 devices
• USB 3.2 Gen 1 compliant, supporting data transfer rates of up to 5Gbps
• LED indicates which host is active
• Over-current protection
• Two USB-A device ports with 5V/1.5A power output and two USB-C device ports with 5V/3A power output
• USB device ports compliant with USB 3.2 Gen 1, USB 2.0 and USB 1.1
• Support USB Multiple Transaction Translator architecture
• Plug and Play – no drivers or external power adapter needed
• Multiplatform support – Windows, Linux and Mac



INPUT PORTS 2× USB HOST TYPE B +2× USB HOST TYPE C
OUTPUT PORTS 2× USB DEVICE TYPE A +2× USB H DEVICE TYPE C
CONTROL PORTS 1 × RS-232 [3pin-3.81mm phoenix connector]
POWER CONSUMPTION 13.2W (Max)
IR LEVEL 5Vp-p
IR FREQUENCY Fixed 38KHz Transmission Distance ESD Protection Input ports Output ports
USB PROTOCOL USB 3.2 Gen 1
COMPATIBILITY USB 3.2 Gen 1, USB 2.0 and USB 1.1
STORAGE / OPERATING TEMPERATURE -4 – 140°F / -20 – 60°C / 32 – 104°F / 0 – 40°C
OPERATING / STORAGE HUMIDITY 20%~80% relative humidity, non-condensing / 10%~90% relative humidity, non-condensing
