17BX03 4K 4:4 HDMI MATRIX W AUDIO

Product Description

nT17BX03 high performance 4×4 HDMI 4K 18Gbps Matrix can switch any of four HDMI 2.0 sources to four HDMI 2.0 displays. Each input and output supports up to 4K60 444 resolution and HDCP 2.2. The outputs can be individually scaled (4K?1080p). De-embedded audio can be output through analog L/R and coaxial audio output ports. The ARC function can return display device audio to coaxial port output only. Advanced EDID management is supported. This Matrix supports 18Gbps bandwidth and the additional features with latest HDMI standards.

Specification

• HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• Video resolution is up to 4K2K@60Hz (YUV 4:4:4)
• Support 18Gbps video bandwidth
• Four outputs can be individually scaled (4K?1080p)
• De-embedded audio to analog L/R and Coaxial ports output
• ARC audio return to the coaxial ports output only
• Built-in Web GUI for TCP/IP control
• Advanced EDID management supported
• Four methods of control: Front panel, RS-232, IR remote and TCP/IP

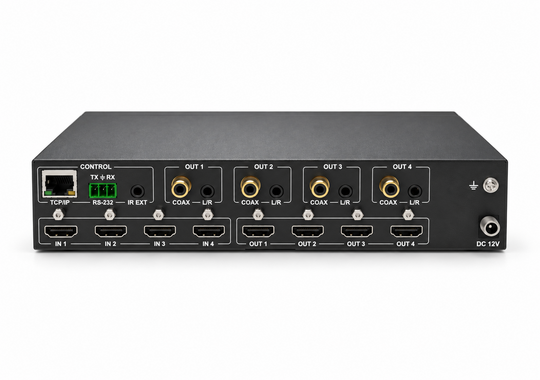

INPUT PORTS 4 x HDMI
OUTPUT 4 X HDMI + 4 X DIGITAL AND ANALOG AUDIO + IP AND RS 232
CONTROL PORTS 1 x RS-232 [3-pin phoenix connector] + 1 IP + 1 IR
COMPLIANCE HDMI 2.0 / HDCP 2.2 , 1.4
RESOLUTION / 4K60 – 4K30 – 1080P60 –
VIDEO BANDWIDTH 18Gbps Video Resolution
AUDIO FORMATS LR-PCM2.0CH / COAXIAL-PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 / HDMI -PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
HDMI CABLE LENGTH 4K60Hz-10ft-3M / 4K30Hz-30ft-10M / 1080P60Hz-42ft-15M
COLOR SPACE RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 Color Depth HDMI Audio Formats DTS, DTS-EX,DTS-96/24, DTS High
POWER DC12V/2.5A

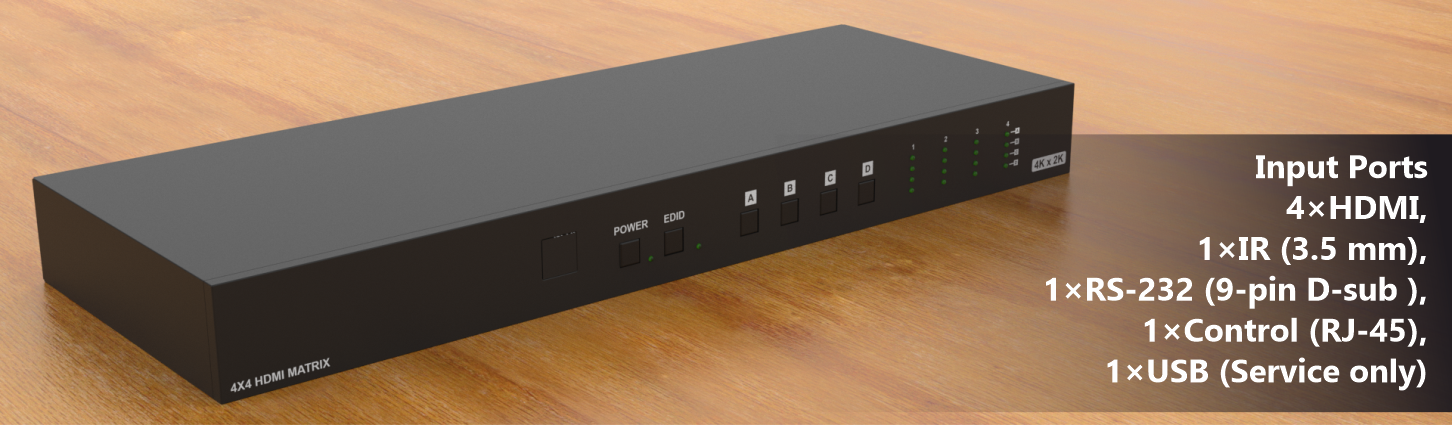

Main Image
Small Image 1
Small Image 2
Small Image 3
Small Image 4
“
