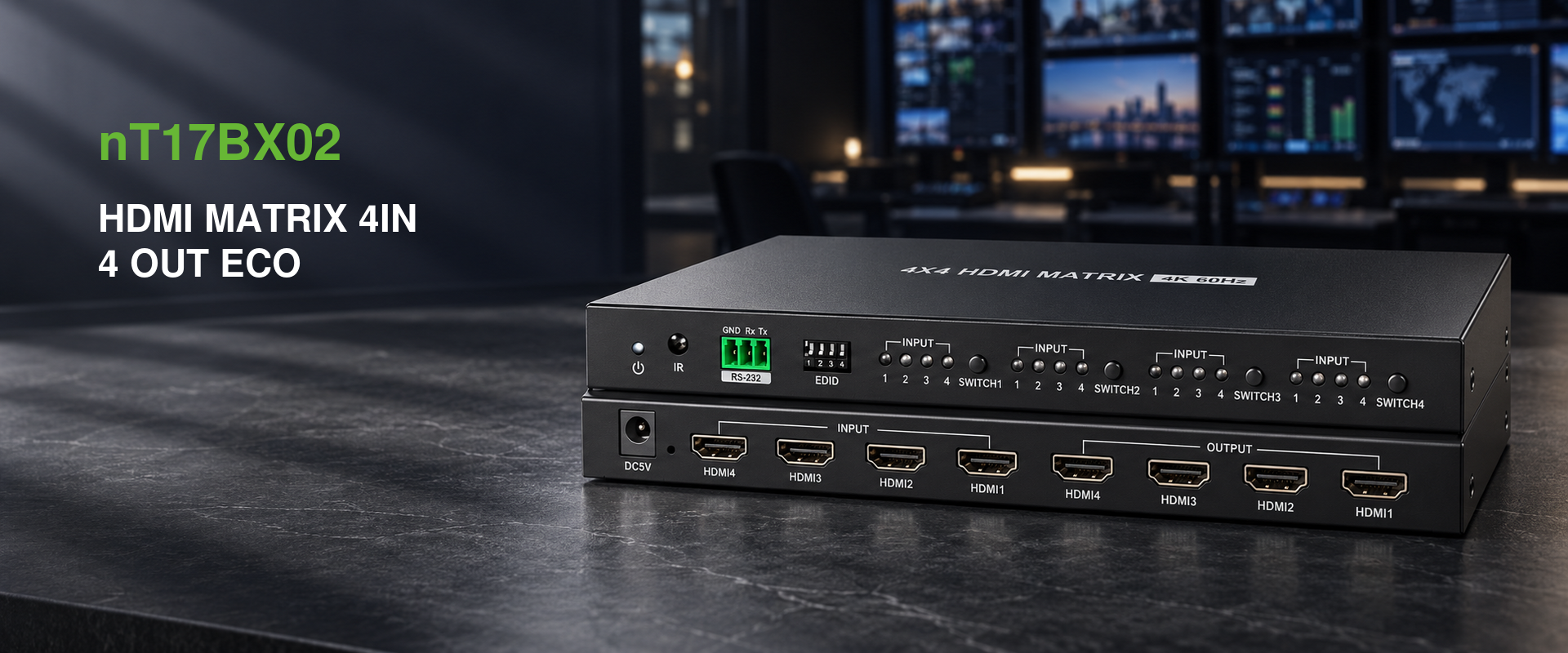

17BX02 4:4 HDMI MATRIX SWITCHER

Product Description

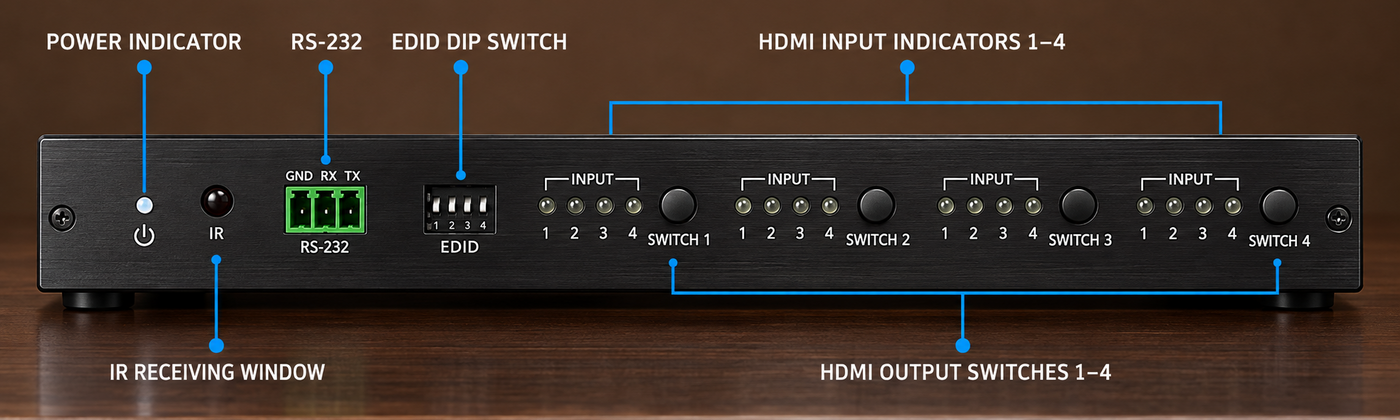

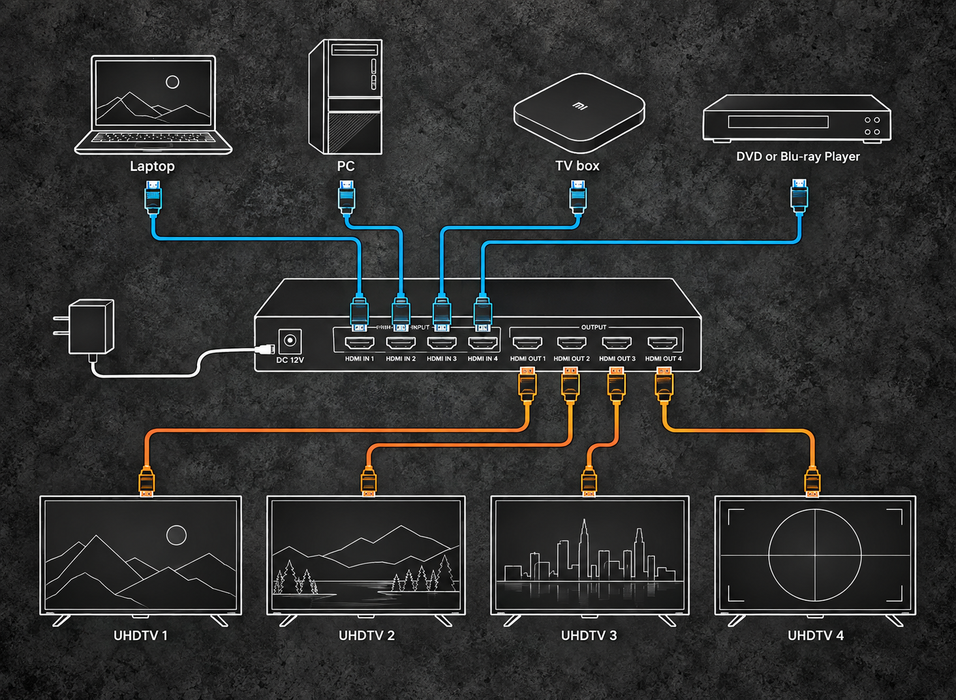

nT17BX02 HDMI Matrix 4 in 4 out switch is a 4K60 Hz 4 in 4 out HDMI matrix switch, it can switch 4 HDMI input signals to 4 HDMI displays as needed. It supports up to 4096×2160@60Hz HDR UHD resolution, and a variety of switching methods (IR remote control, buttons and RS232 , Panel button ) allows users to access the control with flexibility . With Led indicators on the front panel are to identify input – output connectivity . It also has EDID Dip switch for selecting different EDID parameters .

Specification

• HDMI 2.0 , HDCP 2.2 / 1.4 compliant
• Supports digital video formats in Deep Color Mode HDR , YUV 4:4:4 and a new lossless compressed LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/ Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos
• LED input source indicators for each output option
• Supports a wide range of PC and HDTV resolutions up to 4096 x 2160 @ 60 Hz
• High performance Matrix with four inputs and four outputs
• Switchable EDID function for choosing EDID to display
• HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• Video resolution is up to 4K2K@60Hz (YUV 4:4:4)
• Support 18Gbps video bandwidth
• Four outputs can be individually scaled (4K?1080p)
• Three methods of control: Front panel, RS-232 and IR remote

INPUT 4 HDMI
OUTPUT 4 HDMI
RESOLUTION 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/60Hz, 4096×2160@24/25/30/60HzP
PSU DC 5V 1A
CONTROL RS232/REMOTE/FRONT PANEL
Compatible HDMI 2.0 / HDCP 2.2 /1.4
AUDIO LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/ Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos
WORKING TEMPERATURE -20 – 60 C
