Product Description

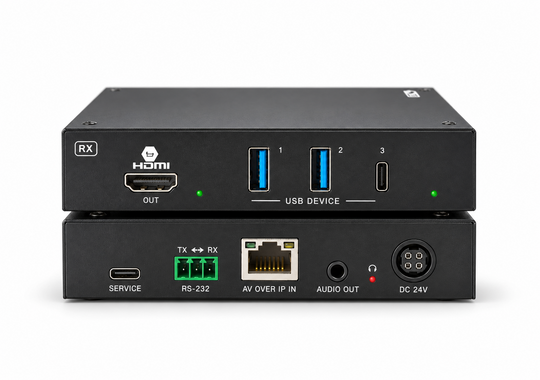

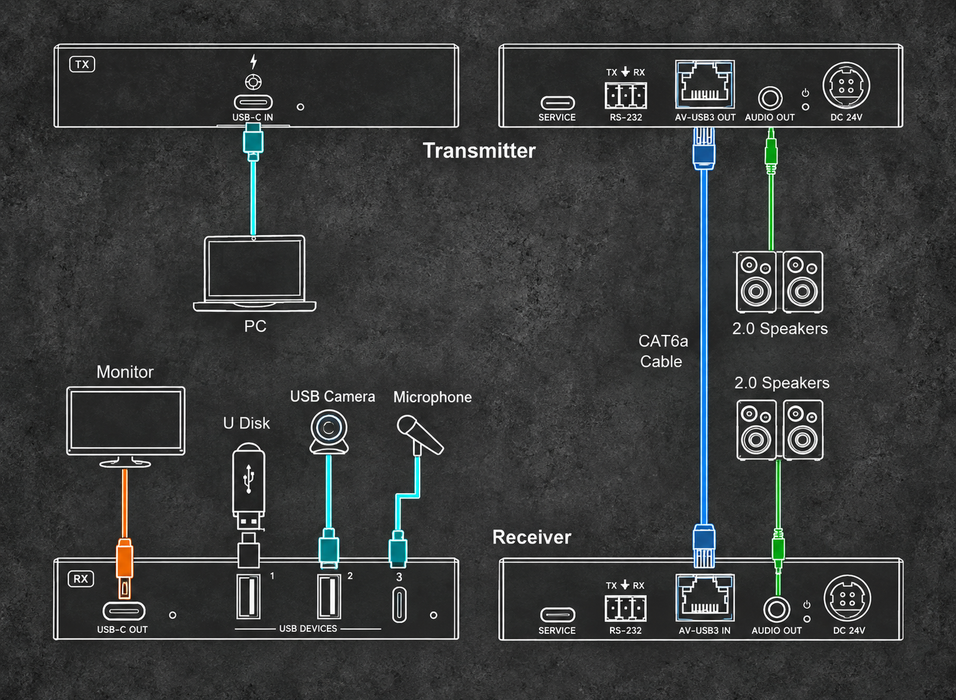

nT16JB06 extends full USB-C signal (video and USB 3.2 data) up to 40m/ 130ft via a single CAT6a cable. The transmitter box (TX) features one full USB-C input, with DisplayPort Alt mode standards (v1.4a) A/V, USB 3.2 Gen 1 data, and PD 100W charging to a laptop. It supports audio de-embedding, RS-232 signal pass-through and bi-directional 24V PoC function. The extender offers the most convenient solution for full USB-C extension via a single CAT cable, and it is a perfect solution for commercial A/V applications. The extender kit can extend HDMI™ video and USB 3.2 data up to 40m/130ft via a single CAT6a cable. The receiver box (RX) features one HDMI™ output and three USB 3.2 downstream ports.
