Product Description

The Stereo Analog to Dual Outputs Digital Converter (ADC) is designed to convert analog stereo audio to Coaxial and TOSLINK Optical digital outputs. The digital output is 2 channels uncompressed LPCM with a sampling rate of 48 kHz. Both Optical and Coaxial cables connected to the output ports of the unit can run up to 5 meters while still providing a reliable and lossless audio signal transmission. The unit is both compact and easy to install, which makes it a very handy device, perfect for converting audio signals in the home or workplace.



Specification

Supports uncompressed output of 2 channels LPCM digital audio signals
Supports an output sampling rate of 48 kHz
Provides electromagnetic-noise-free transmission
Easy to install and operate

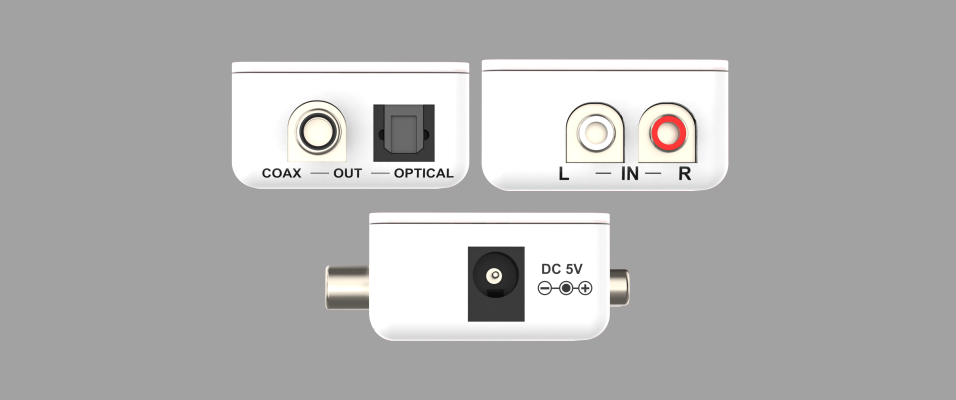

Input Port 1×Analog Stereo (RCA connectors
Output Port 1×Coaxial (Female)

1×Optical (TOSLINK connector)

Power Supply 5V/1.2A DC
Power Consumption 0.6 W
Chassis Material Plastic
Chassis Color White
Dimensions (W×H×D) 57 mm × 23.5 mm × 45.5 mm
Weight 30g
DCT-4N Analog to Digital Audio Converter
