15BX04 4K HDMI / ARC-EARC AUDIO ADAPTER

Product Description

nT15BX04 4K HDMI / ARC-EARC AUDIO ADAPTER is capable to output Dolby Atmos audio from an external HDMI source to eARC/ARC sound systems. Since compliant with audio formats such as LPCM, Dolby True HD and DTS-HD Master Audio, this adapter is a perfect solution for connecting SONOS ARC/BOSE 500/BOSE 700 Soundbars and other eARC/ARC audio/video receivers. It also provides a dedicated HDMI output port for outputting audio only when connecting with legacy AVR without eARC/ARC function.

Specification

• HDMI 2.0b and HDCP 2.3 compliant
• Support 18Gbps video bandwidth
• Support video resolution up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4
• Support HDR, HDR10, HDR10+,Dolby Vision and HLG pass through
• Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Perfect solution for SONOS ARC/BOSE 500/BOSE 700 Soundbars and other eARC/ARC audio/video receivers
• Dedicated HDMI port for outputting audio only when connecting with legacy AVR without eARC/ARC function
• Built-in Equalizer, Retiming and Driver
• Auto EDID management



INPUT 1×HDMI IN [Type A, 19-pin female]
OUTUT 1×HDMI SOUND BAR + 2×HDMI OUT
VIDEO RESOLUTION Up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4
POWER SUPPLY DC 5V/1A Power Consumption 2.28W (Max) Operation
COLOR DEPTH 8-bit,10-bit,12-bit
COLOR SPACE RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 HDMI Audio Formats DTS-EX, DTS-96/24, DTS High Res, DTS-HD
OPERATING TEMPERATURE 0°C ~ 40°C / 32°F ~ 104°F
RELATIVE HUMIDITY 20~90% RH (non-condensing)

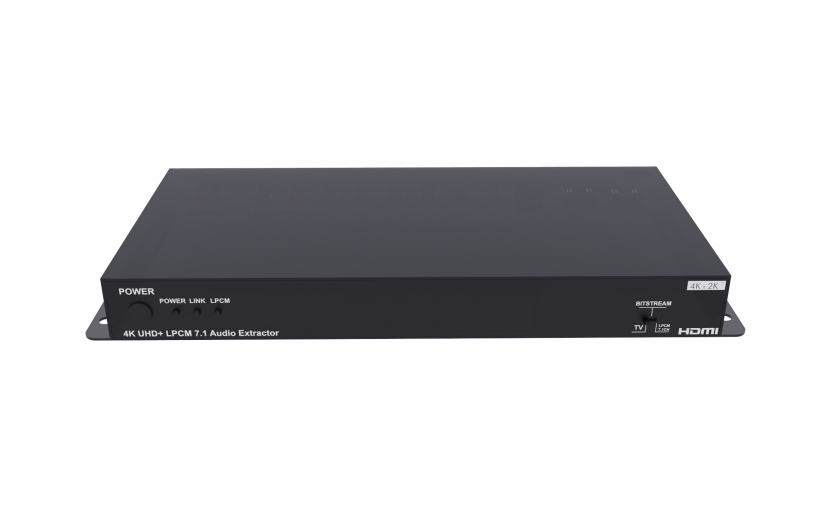

Main Image
