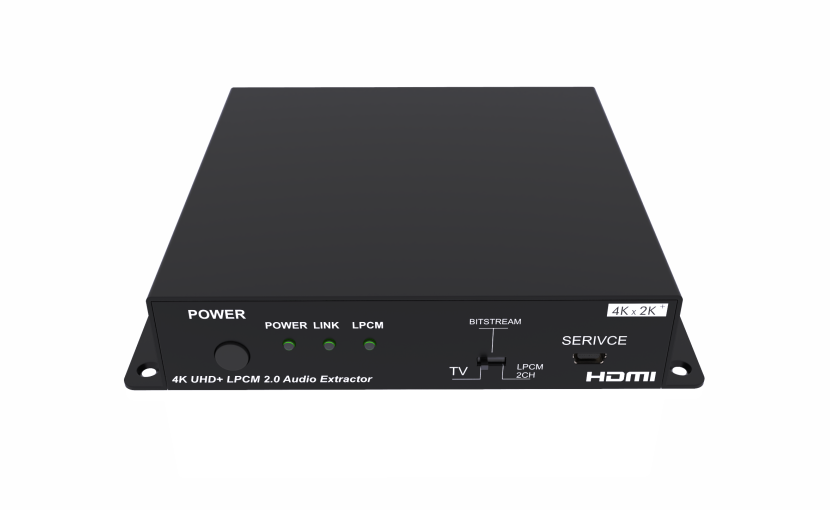

nT15BX03 HDMI /ARC/EARC EXTRACTOR Supports 18Gbps eARC function, which can extract eARC audio from TV terminal and output it to audio amplifier through HDMI port, so that the existing audio amplifier can play high-quality audio. It can effectively solve the problem that the supporting audio amplifier needs to be upgraded due to the upgrading of TV.s or non-HDMI AV receivers.
• HDCP 2.3 / 1.x compliant
• Support 18Gbps video bandwidth
• Support video resolution up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4, as specified in HDMI 2.0b
• Support VESA format up to QSXGA@60Hz
• HDR, HDR10, HDR10+, Dolby Vision pass-through
• Support PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby digital plus, Dolby True-HD, DolbyAtmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master
• Built-in Equalizer, Retiming and Driver
• Dedicated HDMI output for audio only with 720p black screen
• Support eARC/ARC audio (from TV) extract to HDMI audio output

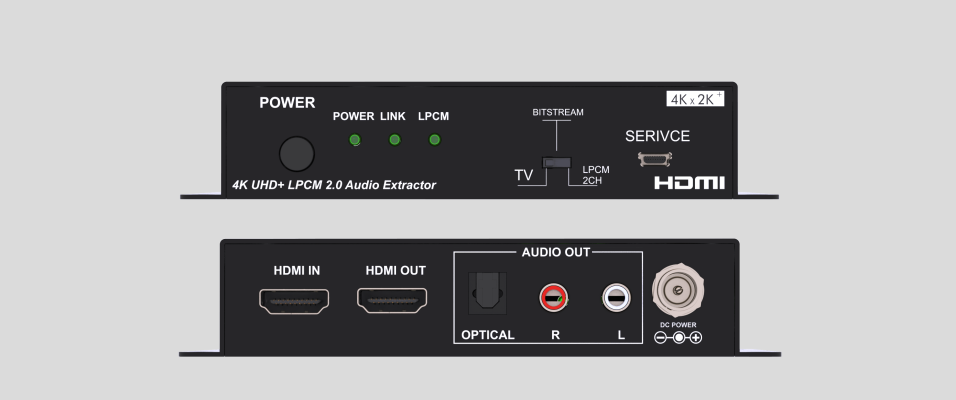

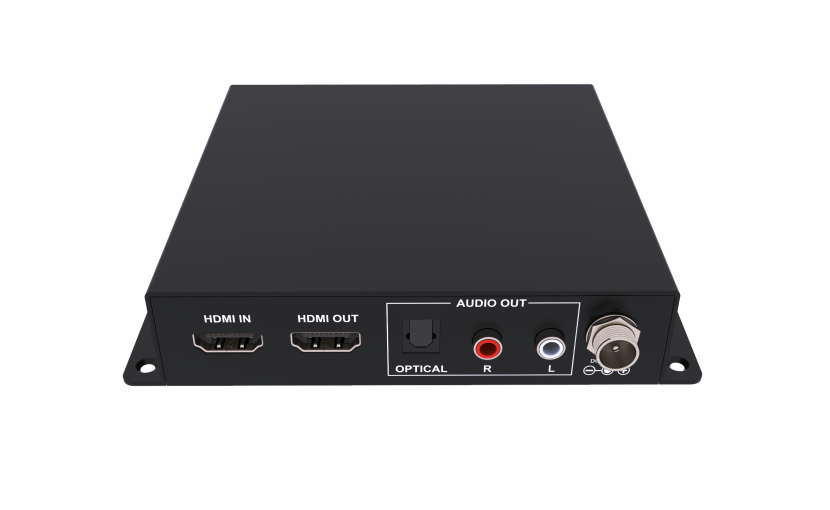

| INPUT | 1x HDMI Type A [19-pin female] |
|---|---|
| OUTPUT | 2x HDMI Type A [19-pin female] |
| COMPLIANCE | HDMI 2.0b / HDCP 2.3 , 1.x< |
| VIDEO RESOLUTION | Up to 4k2k@60Hz 4:4:4 Color Depth |
| VIDEO BANDWIDTH | 18 Gbps |
| POWER SUPPLY | USB 5V / 500mA |
| ESD PROTECTION | ±8kV (air-gap discharge) & |
| COLOR SPACE | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 HDMI Audio Formats Dolby TrueHD, Dolby Atmos, |
