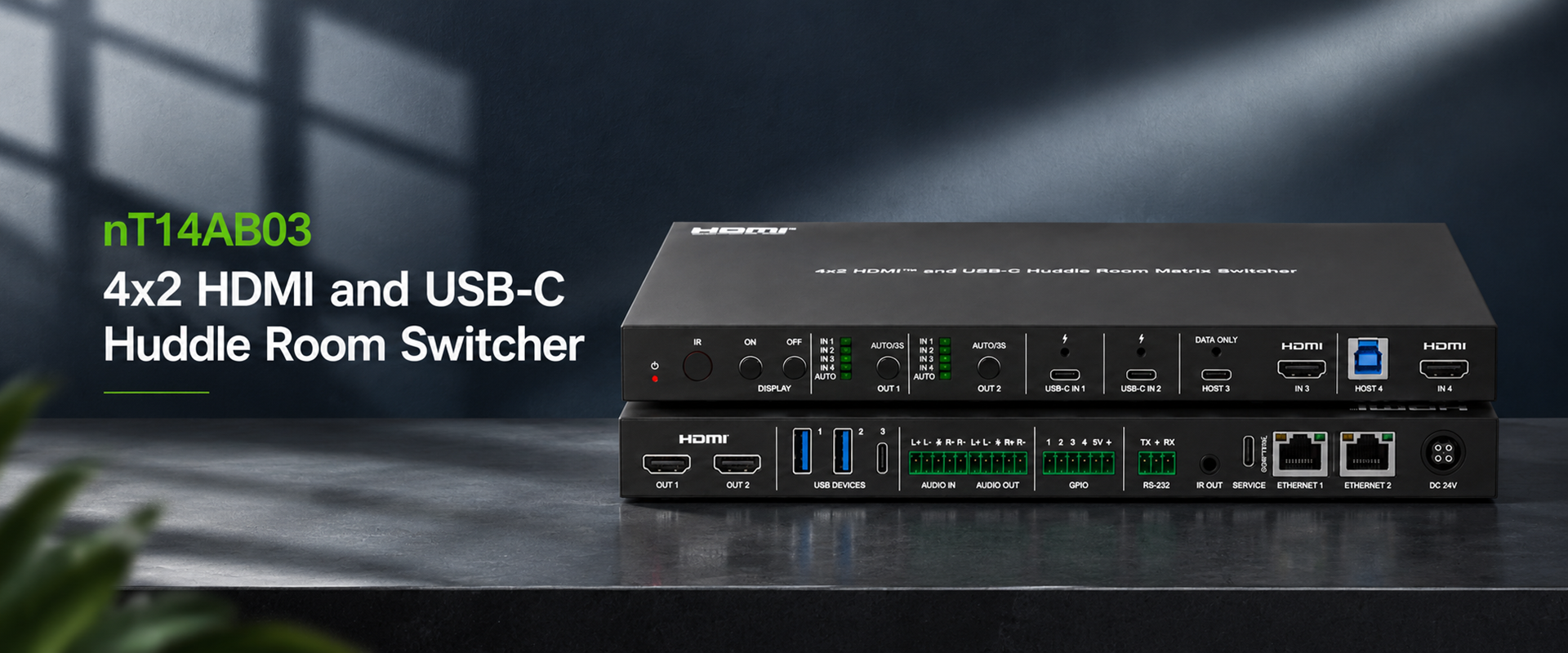

14AB03 4X2 HDMI AND USB-C HUDDLE SWITCH

Product Description

The 4×2 Huddle Room Switcher is a versatile presentation and collaboration solution designed for modern meeting spaces.It features 2× HDMI and 2× USB-C inputs with dual HDMI outputs, supporting resolutions up to 4K@60Hz 4:4:4.Integrated USB KVM connectivity provides USB-C/USB-B host, USB-C/USB-A device ports and dual Gigabit Ethernet.Balanced analog audio supports professional audio embedding and de-embedding for recording and playback.Intelligent auto/manual switching, signal detection and system wake-up simplify meeting-room operation.Advanced integration features include RS-232, GPIO, IR and Ethernet switching for complete system control.Control is available through the front-panel buttons, RS-232, TCP/IP and Web GUI, making it ideal for BYOD huddle and meeting rooms.

Specification

4×2 huddle room switcher with 2 USB-C(DP Alt mode 4k60Hz + 5 Gbps Data + 100 w charging + Ethernet )/2 HDMI and Usb Host input and 2 HDMI output
HDMI™ input up to 4K60Hz 4:4:4, as specifi ed in HDMI™ 2.0b
Fast switching including auto and manual switching modes
Support balanced/un-balanced analog audio embedding to USB or HDMI™ audio and audio de-embeding from usb or hdmi

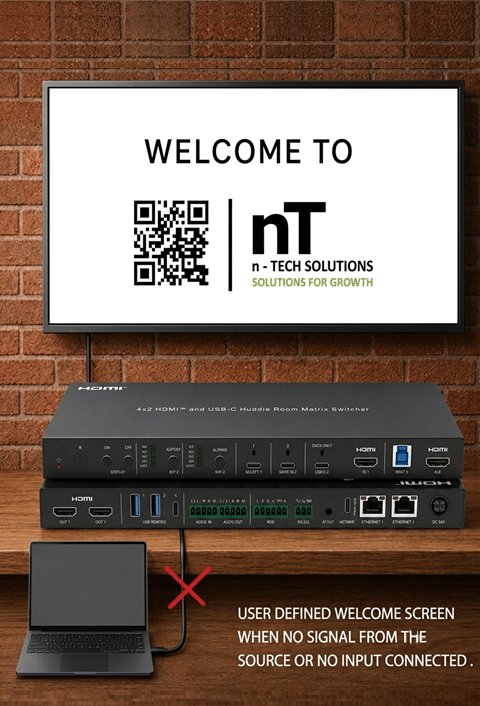

User defined welcome screen and no signal display image
Dual 1G Ethernet ports with 802.1x and VLAN
IR eye for IR learning and control
External device control via CEC/IR/RS-232/LAN/GPIO
Control via front panel buttons, RS-232, TCP/IP and Web GUI control

INPUT 2× IN HDMI/2× USB-C IN /1× USB C HOST /1× USB 3.0 HOST/1 AUDIO
OUTPUT 2 HDMI OUT / 1 USB C / 2 USB 3.0 / 1 AUDIO [5-p

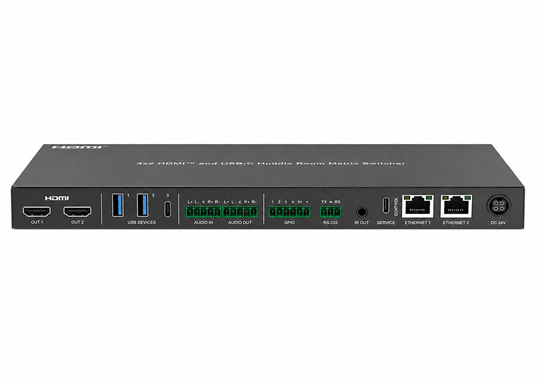

CONTROL 1 RS232 / 1 IR / 2 LAN / 1 GPIO
COMPLIANCE HDMI 2.0b / HDCP 2.3 / DP 1.4(a) /USB 3.2 (5Gbps)
RESOLUTION-BADNWIDTH (4K@60Hz, 4:4:4) / 18 Gbps /
AUDIO IN / OUT 20Hz to 20kHz
POWER DC 24V/7.5A
IR FREQUENCY 20K-60KHz
ESD PROTECTION IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
ETHERNET Dual 1G Ethernet ports with 802.1x and VLAN
IR IR Learning and Control
CONTROL External device control via CEC/IR/RS-232/LAN/GPIO
