Description

nT01BG25 is a USB-C to USB-C M/M Full Feature Bi-directional active cable with Re-timer chipset for enhancing signal (video/data/power) up to 5 meters for video part, it is compatible with DP1.4 with theoretical resolution up to 8K/60HZ, For data part, it is compatible with USB3.2 Gen 2 with max 10Gbps data transmission, Besides, it is capable of delivering max 60W (20A/3A) PD charging. This cable combines video, data and power functions for connecting Type-C PC/laptop to Type-C display/VR/Hard drive/dock/PD charger, Either Type-C male can be host or device side as this cable is bi-directional. it can work on all DP Alt mode supported host, applications VR, MACHINE VISION,VIDEO CONFERENCE CAMERA AND SPEAKERS, PRINTERS, SCANNERS

Specification

Support Type-C male to male bi-directional transmission
Support max 5m transmission distance with stable signal
Support DP1.4 with max theoretical resolution up to 8K/60Hz,8.1Gbps per
lane,32,4Gnps 4 lanes bandwidth
Compatible with USB3.2 Gen 2 with max 10Gbps data transmission,downward
Compatible with lower versions (USB3.1/USB3.0/USB2.0)
Support max 60W(20V/3A) PD Charging

Host USB C PORT
Device USB C PORT
Cable Copper
Version USB 3.2
Speed 10 Gbps
PD Charging Max 20 V/3A
Back ward compatibility 1/3.0/2.0
Bidirectional Yes

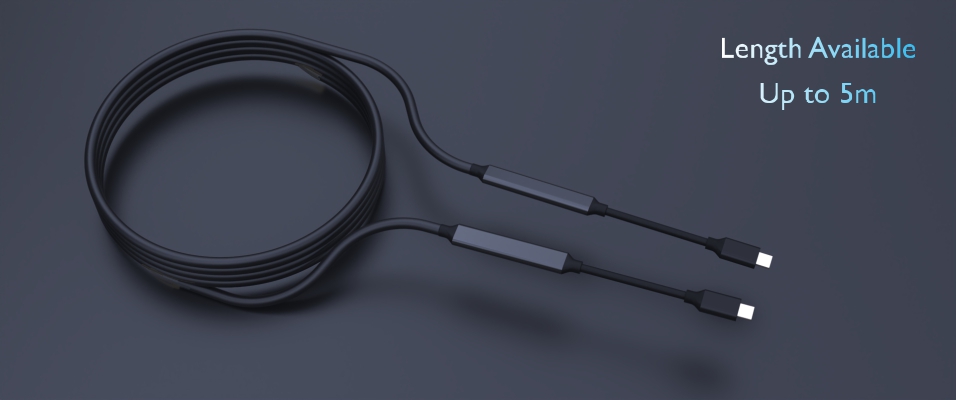

Available Lengths 5 m
Max video resolutions 8K/60 Hz
SPECIFICATION-nT01BG25.pdf
